0034.1513.PT

Active

SCHURTER Inc.

FUSE GLASS 500MA 250VAC 5X20MM

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE GLASS 500MA 250VAC 5X20MM

Technical Specifications

Parameters and characteristics for this part

Specification	0034.1513.PT

Breaking Capacity @ Rated Voltage	35 A
Current Rating (Amps)	0.5 A
Melting I²t	0.151
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case [x]	5 mm
Package / Case [y]	20 mm
Response Time	Fast Blow
Size / Dimension [diameter]	5.4 mm
Size / Dimension [diameter]	0.213 in
Size / Dimension [x]	0.886 "
Size / Dimension [x]	22.5 mm
Voltage Rating - AC	250 V

FUSE GLASS 500MA 250VAC 5X20MM

Part	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Response Time	Melting I²t	Package / Case [x]	Package / Case [y]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Breaking Capacity @ Rated Voltage	Current Rating (Amps)
SCHURTER Inc. 0034.1513.PT	250 V	0.886 "	22.5 mm	5.4 mm	0.213 in	Fast Blow	0.151	5 mm	20 mm	Through Hole	-55 °C	125 °C	35 A	0.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

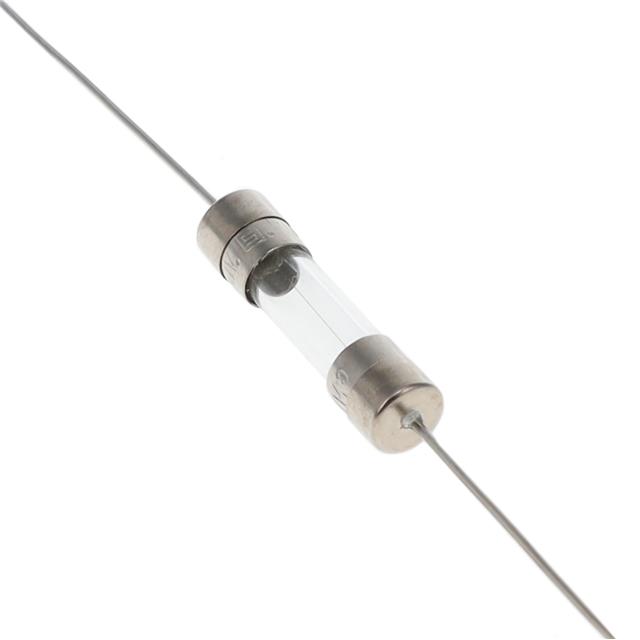

500 mA 250 V AC DC Fuse Cartridge, Glass Through Hole 5mm x 20mm (Axial)
