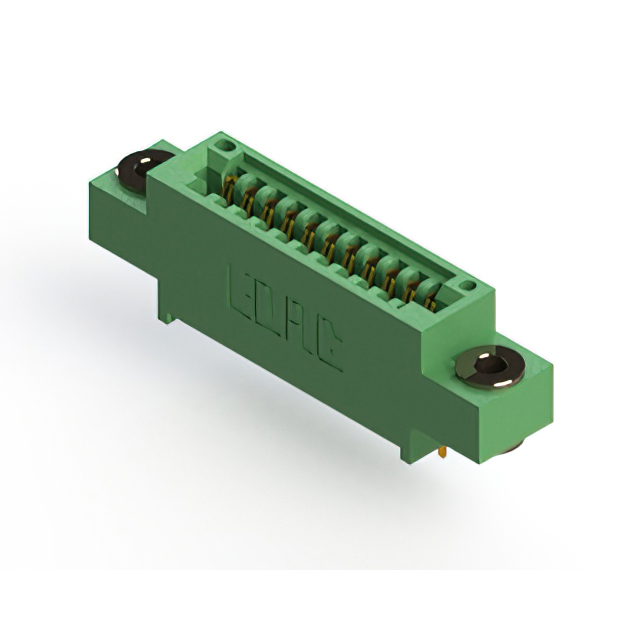

845-011-520-603

Active

EDAC Inc.

CONN EDGE SINGLE FML 11POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-011-520-603

Active

EDAC Inc.

CONN EDGE SINGLE FML 11POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-011-520-603

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	11
Number of Positions/Bay/Row [custom]	11
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

845-011 Series

...

Part	Color	Number of Rows	Card Type	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Contact Type	Read Out	Gender	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Material - Insulation	Mounting Type	Termination	Flange Feature	Contact Material	Termination Rows	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 845-011-525-608	Green	1	Non Specified - Single Edge	11	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	Single	Female	2.54 mm	0.1 in	10 Áin	0.25 Ám	11	Diallyl Phthalate (DAP)	Through Hole	Solder	4-40 Threaded Insert Top Mount Opening	Copper Alloy	1
EDAC Inc. 845-011-520-602	Green	1	Non Specified - Single Edge	11	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	Single	Female	2.54 mm	0.1 in	10 Áin	0.25 Ám	11	Diallyl Phthalate (DAP)	Through Hole	Solder		Copper Alloy	1	3.25 mm	0.128 in
EDAC Inc. 845-011-525-102	Green	1	Non Specified - Single Edge	11	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	Single	Female	2.54 mm	0.1 in	10 Áin	0.25 Ám	11	Diallyl Phthalate (DAP)	Through Hole	Solder	Flush Mount Top Opening Unthreaded	Copper Alloy	1			3.25 mm	0.128 "
EDAC Inc. 845-011-525-602	Green	1	Non Specified - Single Edge	11	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	Single	Female	2.54 mm	0.1 in	10 Áin	0.25 Ám	11	Diallyl Phthalate (DAP)	Through Hole	Solder		Copper Alloy	1	3.25 mm	0.128 in
EDAC Inc. 845-011-525-407	Green	1	Non Specified - Single Edge	11	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	Single	Female	2.54 mm	0.1 in	10 Áin	0.25 Ám	11	Diallyl Phthalate (DAP)	Through Hole	Solder	M3 Threaded Insert Top Mount Opening	Copper Alloy	1
EDAC Inc. 845-011-541-103	Green	1	Non Specified - Single Edge	11	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	Single	Female	2.54 mm	0.1 in	10 Áin	0.25 Ám	11	Diallyl Phthalate (DAP)	Through Hole	Wire Wrap	Floating Bobbin Flush Mount	Copper Alloy	1			2.95 mm	0.116 in
EDAC Inc. 845-011-559-412	Green	1	Non Specified - Single Edge	11	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	Single	Female	2.54 mm	0.1 in	10 Áin	0.25 Ám	11	Diallyl Phthalate (DAP)	Through Hole Right Angle	Solder	Side Mount Opening Unthreaded	Copper Alloy	1	3.25 mm	0.128 in
EDAC Inc. 845-011-540-607	Green	1	Non Specified - Single Edge	11	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	Single	Female	2.54 mm	0.1 in	10 Áin	0.25 Ám	11	Diallyl Phthalate (DAP)	Through Hole	Wire Wrap	M3 Threaded Insert Top Mount Opening	Copper Alloy	1
EDAC Inc. 845-011-520-603	Green	1	Non Specified - Single Edge	11	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	Single	Female	2.54 mm	0.1 in	10 Áin	0.25 Ám	11	Diallyl Phthalate (DAP)	Through Hole	Solder	Floating Bobbin Top Mount Opening	Copper Alloy	1			2.95 mm	0.116 in
EDAC Inc. 845-011-520-407	Green	1	Non Specified - Single Edge	11	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	Single	Female	2.54 mm	0.1 in	10 Áin	0.25 Ám	11	Diallyl Phthalate (DAP)	Through Hole	Solder	M3 Threaded Insert Top Mount Opening	Copper Alloy	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 66.51
Newark	Each	1	$ 76.77
		100	$ 51.00
		250	$ 46.50
		500	$ 41.86
		1000	$ 34.13

Description

General part information

845-011 Series

11 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
