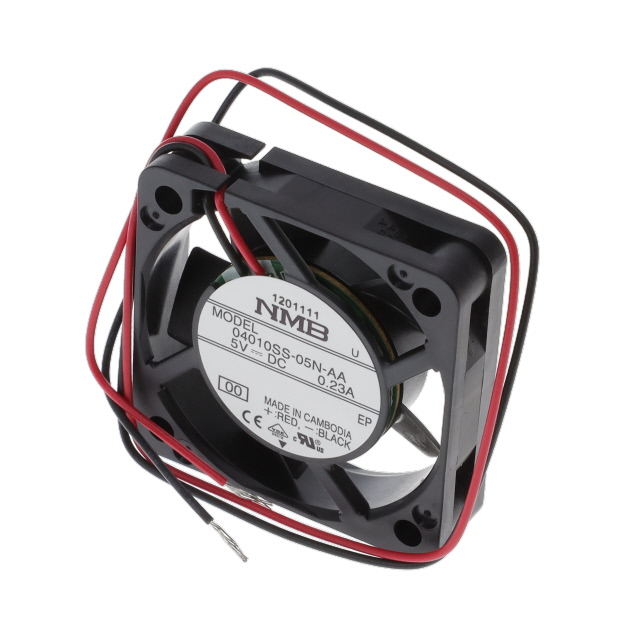

04010SS-05N-AA-00

Active

NMB TECHNOLOGIES

FAN AXIAL 40X10MM 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

04010SS-05N-AA-00

Active

NMB TECHNOLOGIES

FAN AXIAL 40X10MM 5VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	04010SS-05N-AA-00

Air Flow	0.188 mł/min
Air Flow	6.7 CFM
Bearing Type	Sleeve
Current Rating (Amps)	0.17 A
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	29 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	850 mW
RPM	7500 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	49.8 Pa
Static Pressure	0.2 in H2O
Termination	2 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4.5 V
Width [y]	10 mm

04010SS Series

Part	Bearing Type	Lifetime @ Temp.	Features	Voltage - Rated	Static Pressure	Static Pressure	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Width [y]	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Current Rating (Amps)	Termination	Noise	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Air Flow	Air Flow	Material - Blade	Weight	Weight
NMB TECHNOLOGIES 04010SS-12L-AT-00	Sleeve	30000 Hrs	Auto Restart Speed Sensor (Tach)	12 VDC	0.11 in H2O	27.4 Pa	40 mm	Square	40 mm	10 mm	Tubeaxial	10.2 VDC	13.8 VDC	Plastic	0.33 A	3 Wire Leads	21 dB(A)	0.4 W	70 °C	70 °C	-10 °C	-10 °C	5500 RPM	0.137 m³/min	4.9 CFM	Plastic
NMB TECHNOLOGIES 04010SS-12N-AT-00	Sleeve		Speed Sensor (Tach)	12 VDC	0.19 in H2O	47.3 Pa	40 mm	Square	40 mm	10 mm	Tubeaxial	10.2 VDC	13.8 VDC	Plastic	0.059 A	3 Wire Leads	29 dB(A)	700 mW	70 °C	70 °C	-10 °C	-10 °C	7500 RPM	0.188 mł/min	6.7 CFM	Plastic	15.88 g	0.035 lb
NMB TECHNOLOGIES 04010SS-05L-AT-00	Sleeve	30000 Hrs	Auto Restart Speed Sensor (Tach)	5 V			40 mm	Square	40 mm	10 mm	Tubeaxial			Plastic		3 Wire Leads			70 °C	70 °C	-10 °C	-10 °C				Plastic
NMB TECHNOLOGIES 04010SS-05M-AA-00	Sleeve	30000 Hrs	Auto Restart	5 V			40 mm	Square	40 mm	10 mm	Tubeaxial	4.5 V	5.5 V	Plastic		2 Wire Leads	24 dB	0.65 W	70 °C	70 °C	-10 °C	-10 °C	6500 RPM	0.157 m³/min	5.6 CFM	Plastic
NMB TECHNOLOGIES 04010SS-24N-AT-00	Sleeve		Speed Sensor (Tach)	24 VDC	0.19 in H2O	47.3 Pa	40 mm	Square	40 mm	10 mm	Tubeaxial	20 VDC	26.4 VDC	Plastic	46 mA	3 Wire Leads	29 dB(A)	1.1 W	70 °C	70 °C	-10 °C	-10 °C	7500 RPM	0.188 mł/min	6.7 CFM	Plastic	15.88 g	0.035 lb
NMB TECHNOLOGIES 04010SS-05N-AA-00	Sleeve	30000 Hrs	Auto Restart	5 V	0.2 in H2O	49.8 Pa	40 mm	Square	40 mm	10 mm	Tubeaxial	4.5 V	5.5 V	Plastic	0.17 A	2 Wire Leads	29 dB(A)	850 mW	70 °C	70 °C	-10 °C	-10 °C	7500 RPM	0.188 mł/min	6.7 CFM	Plastic
NMB TECHNOLOGIES 04010SS-12M-AL-00	Sleeve	30000 Hrs	Auto Restart Locked Rotor Sensor	12 VDC			40 mm	Square	40 mm	10 mm	Tubeaxial	10.2 VDC	13.8 VDC	Plastic	50 mA	3 Wire Leads	24 dB	600 mW	70 °C	70 °C	-10 °C	-10 °C	6500 RPM	0.16 m³/min	5.7 CFM	Plastic
NMB TECHNOLOGIES 04010SS-12M-AT-00	Sleeve	30000 Hrs	Auto Restart Speed Sensor (Tach)	12 VDC			40 mm	Square	40 mm	10 mm	Tubeaxial	10.2 VDC	13.8 VDC	Plastic	50 mA	3 Wire Leads	24 dB	600 mW	70 °C	70 °C	-10 °C	-10 °C	6500 RPM	0.16 m³/min	5.7 CFM	Plastic
NMB TECHNOLOGIES 04010SS-12L-AL-00	Sleeve	30000 Hrs	Auto Restart Locked Rotor Sensor	12 VDC	0.11 in H2O	27.4 Pa	40 mm	Square	40 mm	10 mm	Tubeaxial	10.2 VDC	13.8 VDC	Plastic	0.33 A	3 Wire Leads	21 dB(A)	0.4 W	70 °C	70 °C	-10 °C	-10 °C	5500 RPM	0.137 m³/min	4.9 CFM	Plastic
NMB TECHNOLOGIES 04010SS-12M-AA-00	Sleeve	30000 Hrs	Auto Restart	12 VDC			40 mm	Square	40 mm	10 mm	Tubeaxial	10.2 VDC	13.8 VDC	Plastic	50 mA	2 Wire Leads	24 dB	600 mW	70 °C	70 °C	-10 °C	-10 °C	6500 RPM	0.157 m³/min	5.6 CFM	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.44
		10	$ 5.74
		25	$ 5.49
		50	$ 5.30
		100	$ 5.12
		250	$ 4.89
		500	$ 4.72

Description

General part information

04010SS Series

Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Sleeve 6.7 CFM (0.188m³/min) 2 Wire Leads
