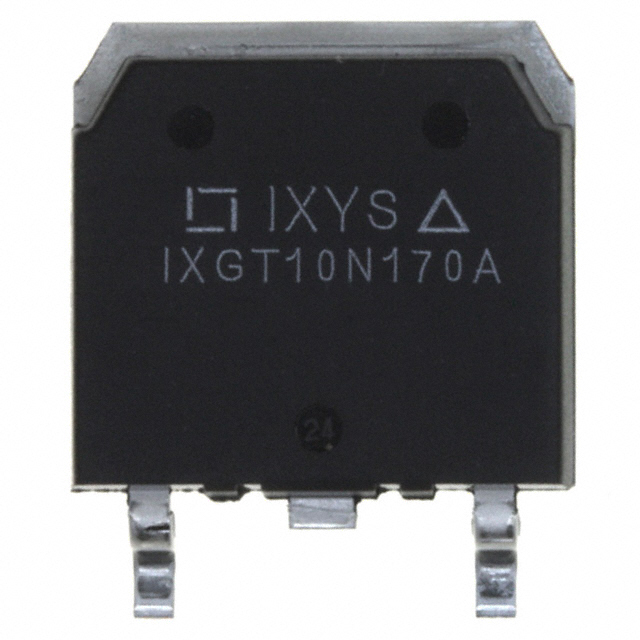

IXGT10N170A

Active

IXYS

IGBT NPT 1700V 10A TO268AA

Search across all available documentation for this part.

Active

IXYS

IGBT NPT 1700V 10A TO268AA

Technical Specifications

Parameters and characteristics for this part

Specification	IXGT10N170A

Current - Collector Pulsed (Icm)	20 A
Gate Charge	29 nC
IGBT Type	NPT
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	D3PAK (2 Leads + Tab), TO-268AA, TO-268-3
Power - Max [Max]	140 W
Supplier Device Package	TO-268AA
Td (on/off) @ 25°C	190 ns
Td (on/off) @ 25°C	46 ns
Test Condition	850 V, 15 V, 22 Ohm, 10 A
Vce(on) (Max) @ Vge, Ic	6 V
Voltage - Collector Emitter Breakdown (Max)	1700 V

Part	Gate Charge	Vce(on) (Max) @ Vge, Ic	Power - Max [Max]	Current - Collector Pulsed (Icm)	Mounting Type	IGBT Type	Current - Collector (Ic) (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Collector Emitter Breakdown (Max)	Supplier Device Package	Td (on/off) @ 25°C	Td (on/off) @ 25°C	Test Condition
IXYS IXGT10N170	32 nC	4 V	110 W	70 A	Surface Mount	NPT	20 A	-55 °C	150 °C	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	1700 V	TO-268AA
IXYS IXGT10N170A	29 nC	6 V	140 W	20 A	Surface Mount	NPT		-55 °C	150 °C	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	1700 V	TO-268AA	190 ns	46 ns	10 A 15 V 22 Ohm 850 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	300	$ 10.20

General part information

IGBT NPT 1700 V 10 A 140 W Surface Mount TO-268AA
