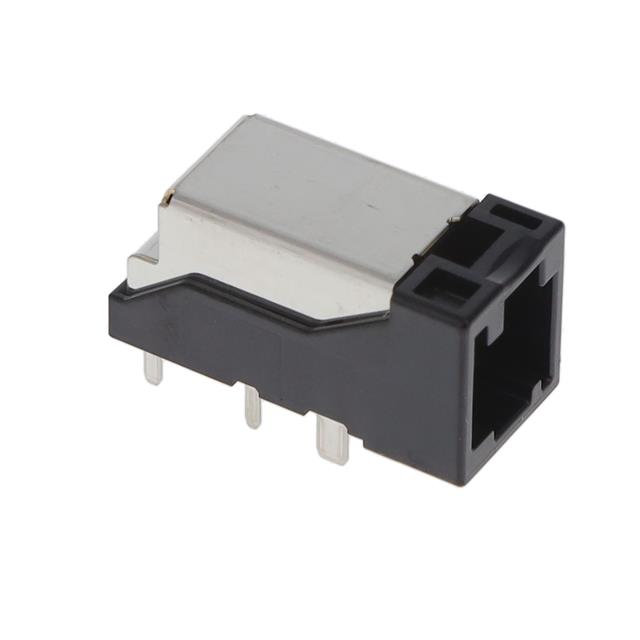

MX74B002VFB

Active

JAE Electronics

CONN PIN HDR STR T/H 2 POS KEY B

Search across all available documentation for this part.

Active

JAE Electronics

CONN PIN HDR STR T/H 2 POS KEY B

Technical Specifications

Parameters and characteristics for this part

Part	Contact Termination	Contact Type	Fastening Type	Mounting Type	Number of Rows	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Color	Features	Applications	Style	Contact Shape	Current Rating (Amps)	Insulation Height	Insulation Height	Insulation Color	Voltage Rating	Number of Positions Loaded	Shrouding	Termination
JAE Electronics MX74B002XGA	Crimp	Female Socket	Latch Lock	Free Hanging (In-Line)	1	Receptacle	-40 °C	105 ░C	2	Black
JAE Electronics MX74B002HFB		Male Pin	Latch Holder	Through Hole Right Angle	1	Header	-40 °C	105 ░C	2		Solder Retention	Automotive	Board to Cable/Wire	Square	3 A	11.35 mm	0.447 in	Gray	30 VDC	All	Shrouded - 4 Wall	Solder
JAE Electronics MX74B002XGB	Crimp	Female Socket	Latch Lock	Free Hanging (In-Line)	1	Receptacle	-40 °C	105 ░C	2	Gray
JAE Electronics MX74B002VFB		Male Pin	Latch Holder	Through Hole	1	Header	-40 °C	105 ░C	2		Solder Retention	Automotive	Board to Cable/Wire	Square	3 A	20.8 mm	0.819 in	Gray	30 VDC	All	Shrouded - 4 Wall	Solder
JAE Electronics MX74B002VFA		Male Pin	Latch Holder	Through Hole	1	Header	-40 °C	105 ░C	2		Solder Retention	Automotive	Board to Cable/Wire	Square	3 A	20.8 mm	0.819 in	Black	30 VDC	All	Shrouded - 4 Wall	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 2 position

Technical documentation and resources

No documents available
