M22-2530205
ActiveHarwin Inc.

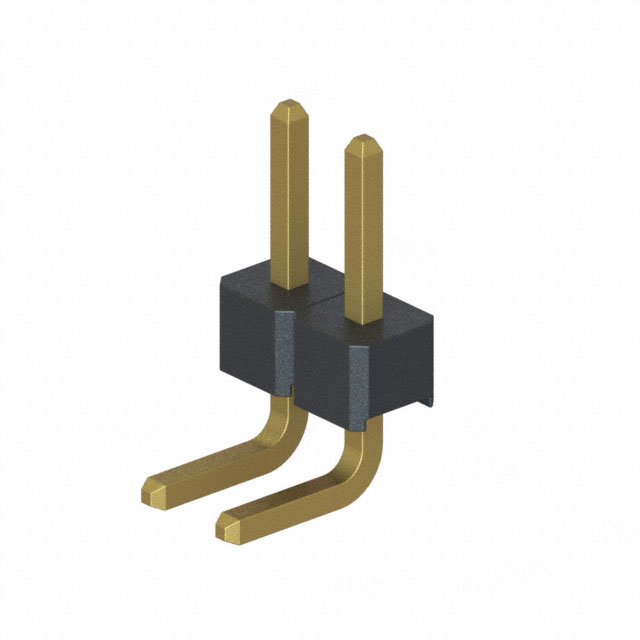

PIN HEADER, BOARD-TO-BOARD, 2 MM, 1 ROWS, 2 CONTACTS, THROUGH HOLE, M22 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
M22-2530205
ActiveHarwin Inc.
PIN HEADER, BOARD-TO-BOARD, 2 MM, 1 ROWS, 2 CONTACTS, THROUGH HOLE, M22 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M22-2530205 |
|---|---|
| Connector Type | Cuttable, Header |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.138 in |
| Contact Length - Mating | 3.5 mm |
| Contact Length - Post | 0.094 in |
| Contact Length - Post | 2.4 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.079 in |
| Insulation Height | 2 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
M22-253 Series
| Part | Insulation Height | Insulation Height | Mounting Type | Number of Positions | Insulation Material | Termination | Contact Finish - Mating | Number of Positions Loaded | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Type | Shrouding | Contact Shape | Contact Length - Mating | Contact Length - Mating | Fastening Type | Contact Length - Post | Contact Length - Post | Number of Rows | Pitch - Mating [x] | Pitch - Mating [x] | Current Rating (Amps) | Material Flammability Rating | Connector Type | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 0.079 in | 2 mm | Through Hole Right Angle | 4 | Nylon 6T Polyamide (PA6T) | Solder | Gold | All | Black | -40 °C | 105 ░C | Phosphor Bronze | Male Pin | Unshrouded | Square | 0.138 in | 3.5 mm | Push-Pull | 0.094 in | 2.4 mm | 1 | 0.079 in | 2 mm | 1 A | UL94 V-0 | Cuttable Header | |
Harwin Inc. | 0.079 in | 2 mm | Through Hole Right Angle | 2 | Nylon 6T Polyamide (PA6T) | Solder | Gold | All | Black | -40 °C | 105 ░C | Phosphor Bronze | Male Pin | Unshrouded | Square | 0.138 in | 3.5 mm | Push-Pull | 0.094 in | 2.4 mm | 1 | 0.079 in | 2 mm | 1 A | UL94 V-0 | Cuttable Header | |
Harwin Inc. | 0.079 in | 2 mm | Through Hole Right Angle | Nylon 6T Polyamide (PA6T) | Solder | Gold | All | Black | -40 °C | 105 ░C | Phosphor Bronze | Male Pin | Unshrouded | Square | 0.138 in | 3.5 mm | Push-Pull | 0.094 in | 2.4 mm | 1 | 0.079 in | 2 mm | 1 A | UL94 V-0 | Cuttable Header | ||
Harwin Inc. | 0.079 in | 2 mm | Through Hole Right Angle | 9 | Nylon 6T Polyamide (PA6T) | Solder | All | Black | -40 °C | 105 ░C | Phosphor Bronze | Male Pin | Unshrouded | Square | 0.138 in | 3.5 mm | Push-Pull | 0.094 in | 2.4 mm | 1 | 0.079 in | 2 mm | 1 A | UL94 V-0 | Cuttable Header | Tin | |
Harwin Inc. | 0.079 in | 2 mm | Through Hole Right Angle | 6 | Nylon 6T Polyamide (PA6T) | Solder | Gold | All | Black | -40 °C | 105 ░C | Phosphor Bronze | Male Pin | Unshrouded | Square | 0.138 in | 3.5 mm | Push-Pull | 0.094 in | 2.4 mm | 1 | 0.079 in | 2 mm | 1 A | UL94 V-0 | Cuttable Header | |
Harwin Inc. | 0.079 in | 2 mm | Through Hole Right Angle | 14 | Nylon 6T Polyamide (PA6T) | Solder | Gold | All | Black | -40 °C | 105 ░C | Phosphor Bronze | Male Pin | Unshrouded | Square | 0.138 in | 3.5 mm | Push-Pull | 0.094 in | 2.4 mm | 1 | 0.079 in | 2 mm | 1 A | UL94 V-0 | Cuttable Header | |
Harwin Inc. | 0.079 in | 2 mm | Through Hole Right Angle | 20 | Nylon 6T Polyamide (PA6T) | Solder | Gold | All | Black | -40 °C | 105 ░C | Phosphor Bronze | Male Pin | Unshrouded | Square | 0.138 in | 3.5 mm | Push-Pull | 0.094 in | 2.4 mm | 1 | 0.079 in | 2 mm | 1 A | UL94 V-0 | Cuttable Header | |
Harwin Inc. | 0.079 in | 2 mm | Through Hole Right Angle | 7 | Nylon 6T Polyamide (PA6T) | Solder | All | Black | -40 °C | 105 ░C | Phosphor Bronze | Male Pin | Unshrouded | Square | 0.138 in | 3.5 mm | Push-Pull | 0.094 in | 2.4 mm | 1 | 0.079 in | 2 mm | 1 A | UL94 V-0 | Cuttable Header | Tin | |
Harwin Inc. | 0.079 in | 2 mm | Through Hole Right Angle | 8 | Nylon 6T Polyamide (PA6T) | Solder | Gold | All | Black | -40 °C | 105 ░C | Phosphor Bronze | Male Pin | Unshrouded | Square | 0.138 in | 3.5 mm | Push-Pull | 0.094 in | 2.4 mm | 1 | 0.079 in | 2 mm | 1 A | UL94 V-0 | Cuttable Header |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M22-253 Series
Connector Header Through Hole, Right Angle 2 position 0.079" (2.00mm)
