BHL-7-01
ActiveEssentra Access Solutions

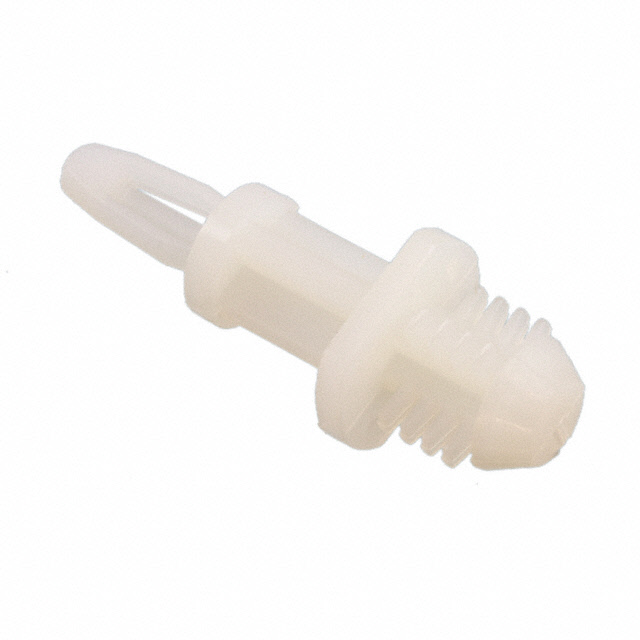

BRD SPT SNAP LOCK BARBED 7/16"
Deep-Dive with AI
Search across all available documentation for this part.
BHL-7-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK BARBED 7/16"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BHL-7-01 |
|---|---|
| Between Board Height | 0.438 in |
| Between Board Height | 0.4375 in |
| Between Board Height | 11.13 mm |
| Features | Blind Hole Mating |
| Holding Type | Snap Lock |
| Length - Overall [x] | 30 mm |
| Length - Overall [x] | 1.181 in |
| Material | Nylon |
| Mounting Hole Diameter | 7.92 mm |
| Mounting Hole Diameter | 0.3125 " |
| Mounting Hole Diameter | 0.312 " |
| Mounting Panel Thickness | 0.25 " |
| Mounting Panel Thickness | 6.35 mm |
| Mounting Panel Thickness | 0.25 " |
| Mounting Type | Barbed Fastener |
| Support Hole Diameter [diameter] | 0.15625 in |
| Support Hole Diameter [diameter] | 3.96 mm |
| Support Hole Diameter [diameter] | 0.156 in |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.36 | |
| 5 | $ 0.30 | |||
| 10 | $ 0.28 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.24 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.18 | |||
Description
General part information
BHL-7 Series
Board Support Snap Lock / Barbed Fastener Nylon 0.438" (11.13mm) 7/16"
Documents
Technical documentation and resources
No documents available
