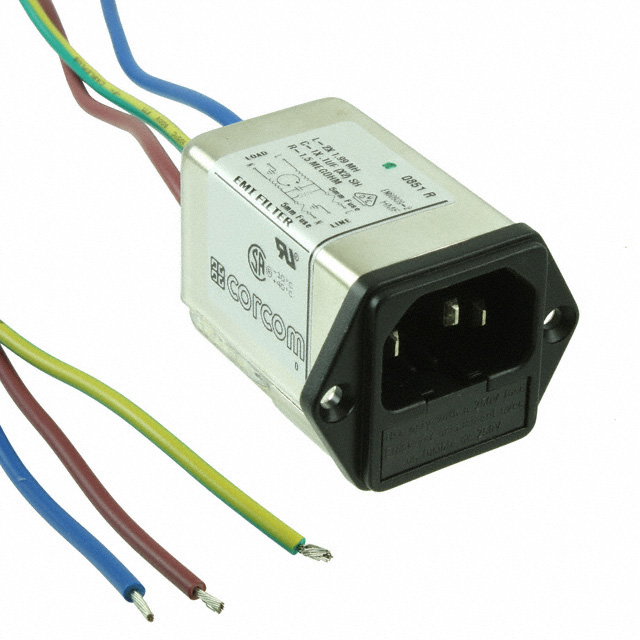

1-1609117-5

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	1-1609117-5

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	1 A
Current Rating - Filter	1 A
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	31.5 mm
Panel Cutout Dimensions [y]	32.8 mm
Termination	Wire Leads
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Connector Style	Filter Type	Mounting Type	Current Rating - Appliance Inlet	Approval Agency	Fuse Holder, Drawer	Current Rating - Filter	Accomodates a Fuse	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Connector Type	Termination	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
TE Connectivity Corcom Filters 1-1609117-5	IEC 320-C14	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	1 A	CSA, UL, VDE	Fuse Holder, Twin Fused	1 A		250 VAC	120 VAC	Receptacle, Male Blades - Module	Wire Leads	32.8 mm	31.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
