BMR4560005/001

Active

Flex Power Modules

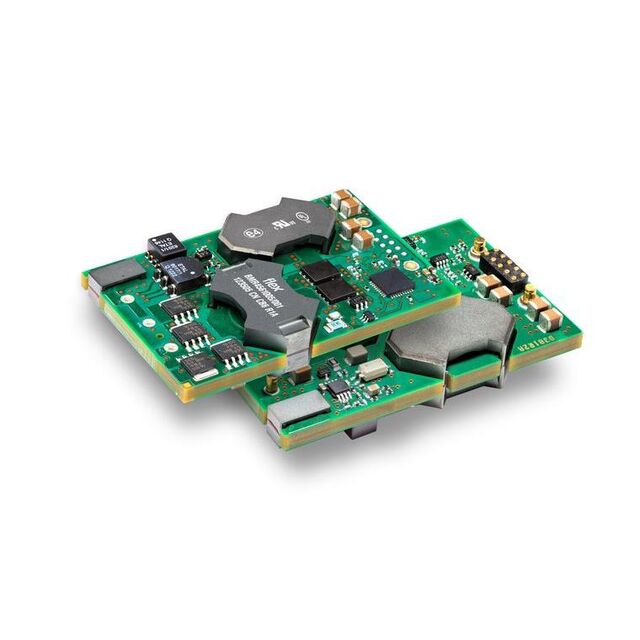

DC DC CONVERTER 12V 420W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BMR4560005/001

Active

Flex Power Modules

DC DC CONVERTER 12V 420W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMR4560005/001	BMR456 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	35 A	35 - 39 A
Efficiency	96.4 %	96.4 - 96.8 %
Features	Remote Sense, Adjustable Output, PMBus™, Remote On/Off	Remote Sense, Adjustable Output, PMBus™, Remote On/Off, Baseplate
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Quarter Brick	Quarter Brick
Power (Watts)	420 W	420 - 468 W
Size / Dimension [x]	2.28 in	2.28 in
Size / Dimension [x]	57.9 mm	57.9 mm
Size / Dimension [y]	36.8 mm	36.8 mm
Size / Dimension [y]	1.45 in	1.45 in
Size / Dimension [z]	11.3 mm	11.3 - 13.2 mm
Size / Dimension [z]	0.44 "	0.44 - 0.52 "
Standard Number	62368-1	62368-1
Supplier Device Package	Quarter Brick	Quarter Brick
Type	Isolated Module, Digital	Isolated Module, Digital
Voltage - Input (Max) [Max]	75 V	60 - 75 V
Voltage - Input (Min) [Min]	36 V	36 - 40 V
Voltage - Isolation	2250 VDC	2250 VDC
Voltage - Output 1	12 V	12 V

BMR456 Series

DC DC CONVERTER 12V 420W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Approval Agency	Package / Case	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Supplier Device Package	Standard Number	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Control Features	Features	Voltage - Isolation	Voltage - Output 1	Efficiency	Power (Watts)	Type	Applications	Mounting Type
Flex Power Modules BMR4560005/001	125 °C	-40 °C	1	CB, CSA, IEC, TUV, UL	Quarter Brick	35 A	75 V	Quarter Brick	62368-1	2.28 in	11.3 mm	0.44 "	57.9 mm	36.8 mm	1.45 in	36 V	Active Low, Enable	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	2250 VDC	12 V	96.4 %	420 W	Isolated Module, Digital	ITE (Commercial)	Through Hole
Flex Power Modules BMR4560004/001	125 °C	-40 °C	1	CB, CSA, IEC, TUV, UL	Quarter Brick	35 A	75 V	Quarter Brick	62368-1	2.28 in	11.3 mm	0.44 "	57.9 mm	36.8 mm	1.45 in	36 V	Active Low, Enable	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	2250 VDC	12 V	96.4 %	420 W	Isolated Module, Digital	ITE (Commercial)	Through Hole
Flex Power Modules BMR4560104/001	125 °C	-40 °C	1	CB, CSA, IEC, TUV, UL	Quarter Brick	35 A	75 V	Quarter Brick	62368-1	2.28 in	13.2 mm	0.52 "	57.9 mm	36.8 mm	1.45 in	36 V	Active Low, Enable	Adjustable Output, Baseplate, PMBus™, Remote On/Off, Remote Sense	2250 VDC	12 V	96.4 %	420 W	Isolated Module, Digital	ITE (Commercial)	Through Hole
Flex Power Modules BMR4560105/001	125 °C	-40 °C	1	CB, CSA, IEC, TUV, UL	Quarter Brick	35 A	75 V	Quarter Brick	62368-1	2.28 in	13.2 mm	0.52 "	57.9 mm	36.8 mm	1.45 in	36 V	Active Low, Enable	Adjustable Output, Baseplate, PMBus™, Remote On/Off, Remote Sense	2250 VDC	12 V	96.4 %	420 W	Isolated Module, Digital	ITE (Commercial)	Through Hole
Flex Power Modules BMR4560012/016	125 °C	-40 °C	1	CB, CSA, IEC, TUV, UL	Quarter Brick	39 A	60 V	Quarter Brick	62368-1	2.28 in	11.3 mm	0.44 "	57.9 mm	36.8 mm	1.45 in	40 V	Active Low, Enable	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	2250 VDC	12 V	96.8 %	468 W	Isolated Module, Digital	ITE (Commercial)	Through Hole
Flex Power Modules BMR4560006/013	125 °C	-40 °C	1	CB, CSA, IEC, TUV, UL	Quarter Brick	35 A	75 V	Quarter Brick	62368-1	2.28 in	11.3 mm	0.44 "	57.9 mm	36.8 mm	1.45 in	36 V	Active Low, Enable	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	2250 VDC	12 V		420 W	Isolated Module, Digital	ITE (Commercial)	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 67.34
		5	$ 66.81
		10	$ 66.29
		25	$ 64.18
		60	$ 61.03
		120	$ 56.82

Description

General part information

BMR456 Series

Isolated Module, Digital DC DC Converter 1 Output 12V 35A 36V - 75V Input

Documents

Technical documentation and resources
