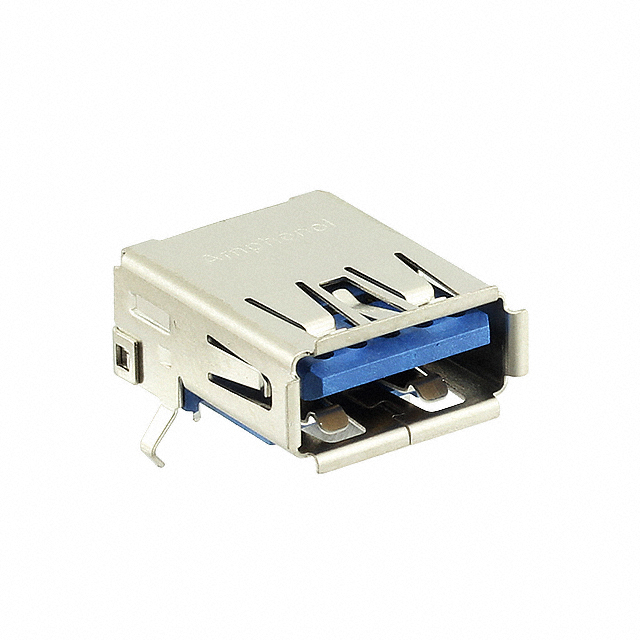

Specification	GSB4111312HR

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Features	Board Lock
Gender	Receptacle
Insulation Color	Blue
Mating Cycles	5000 cycles
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts	9
Number of Ports	1
Shell/Shielding Material	Copper Alloy
Shielding	Shielded
Specifications	Superspeed + (USB 3.1), USB 3.2 Gen 2 (USB 3.1 Gen 2
Termination	Solder

GSB41 Series

Part	Shell/Shielding Material	Contact Finish	Insulation Color	Features	Connector Type	Mating Cycles	Number of Ports	Specifications	Mounting Feature	Number of Contacts	Gender	Mounting Type	Termination	Shielding	Material Flammability Rating
Amphenol ICC (Commercial Products) GSB4111312HR	Copper Alloy	Gold	Blue	Board Lock	USB-A (USB TYPE-A)	5000 cycles	1	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Horizontal	9	Receptacle	Right Angle Through Hole	Solder	Shielded
Amphenol ICC (Commercial Products) GSB411B34HR	Stainless (SUS) Steel	Gold	Blue	Board Lock Solder Retention	USB-A (USB TYPE-A)	5000 cycles	1	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Horizontal Mid Mount Reverse	9	Receptacle	Board Edge Cutout Right Angle Through Hole	Solder	Shielded	UL94 HB
Amphenol ICC (Commercial Products) GSB412137CHR	Steel (SK7)	Gold	Blue	Board Lock	USB-A (USB TYPE-A)	5000 cycles	1	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Vertical	9	Receptacle	Through Hole	Solder	Shielded	UL94 V-0
Amphenol ICC (Commercial Products) GSB416445CHR	Steel (SPCC)	Gold	Blue		USB-A (USB TYPE-A)	5000 cycles	1	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2	Horizontal	9	Plug	Right Angle Surface Mount Through Hole	Solder	Shielded	UL94 V-0
