Q-2H04300011.5M

Active

Amphenol Custom Cable

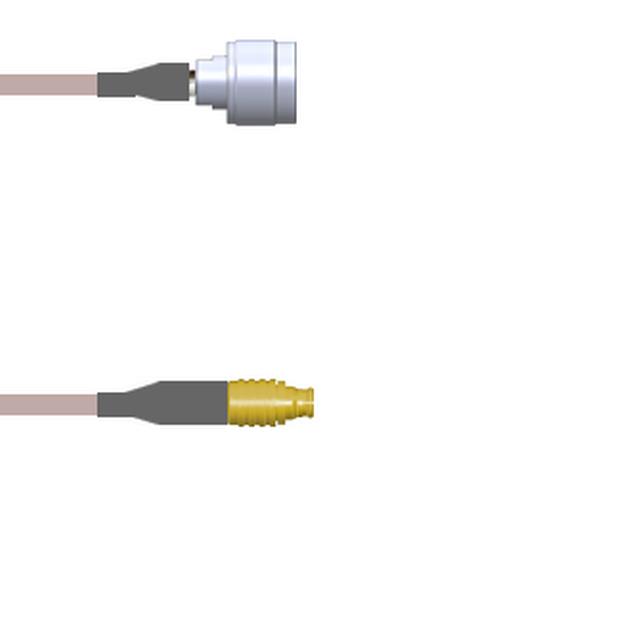

CBL ASSY SMP-NTYPE PLUG-PLG 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2H04300011.5M

Active

Amphenol Custom Cable

CBL ASSY SMP-NTYPE PLUG-PLG 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2H04300011.5M

1st Connector	SMP Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	SMP to N-Type

Q-2H0430 Series

Part	1st Contact Gender	2nd Connector Mounting Type	Length	Length	Length	Frequency - Max [Max]	1st Connector Mounting Type	Style	1st Connector	2nd Connector	Features	Cable Type	Overall Impedance	Color	2nd Contact Gender
Amphenol Custom Cable Q-2H0430001084i	Male	Free Hanging (In-Line)	84 in	2.1 m	7 ft	11 GHz	Free Hanging (In-Line)	SMP to N-Type	SMP Plug	N-Type Plug	Shielded	RG-178	50 Ohms	Copper	Male
Amphenol Custom Cable Q-2H0430001072i	Male	Free Hanging (In-Line)	72 in	1.8 m	6 ft	11 GHz	Free Hanging (In-Line)	SMP to N-Type	SMP Plug	N-Type Plug	Shielded	RG-178	50 Ohms	Copper	Male
Amphenol Custom Cable Q-2H0430001060i	Male	Free Hanging (In-Line)	5 '	1.5 m	5 ft	11 GHz	Free Hanging (In-Line)	SMP to N-Type	SMP Plug	N-Type Plug	Shielded	RG-178	50 Ohms	Copper	Male
Amphenol Custom Cable Q-2H04300011.5M	Male	Free Hanging (In-Line)	59.1 in	1.5 m	4.9 ft	11 GHz	Free Hanging (In-Line)	SMP to N-Type	SMP Plug	N-Type Plug	Shielded	RG-178	50 Ohms	Copper	Male
Amphenol Custom Cable Q-2H0430001.75M	Male	Free Hanging (In-Line)	29.53 "	750 mm		11 GHz	Free Hanging (In-Line)	SMP to N-Type	SMP Plug	N-Type Plug	Shielded	RG-178	50 Ohms	Copper	Male
Amphenol Custom Cable Q-2H0430001108i	Male	Free Hanging (In-Line)	108 in	2.7 m	9 ft	11 GHz	Free Hanging (In-Line)	SMP to N-Type	SMP Plug	N-Type Plug	Shielded	RG-178	50 Ohms	Copper	Male
Amphenol Custom Cable Q-2H0430001012i	Male	Free Hanging (In-Line)	12 "	304.8 mm		11 GHz	Free Hanging (In-Line)	SMP to N-Type	SMP Plug	N-Type Plug	Shielded	RG-178	50 Ohms	Copper	Male
Amphenol Custom Cable Q-2H0430001024i	Male	Free Hanging (In-Line)	24 "	609.6 mm		11 GHz	Free Hanging (In-Line)	SMP to N-Type	SMP Plug	N-Type Plug	Shielded	RG-178	50 Ohms	Copper	Male
Amphenol Custom Cable Q-2H04300010.5M	Male	Free Hanging (In-Line)	19.69 "	50 cm		11 GHz	Free Hanging (In-Line)	SMP to N-Type	SMP Plug	N-Type Plug	Shielded	RG-178	50 Ohms	Copper	Male
Amphenol Custom Cable Q-2H0430001048i	Male	Free Hanging (In-Line)	48 in	1200 mm	4 ft	11 GHz	Free Hanging (In-Line)	SMP to N-Type	SMP Plug	N-Type Plug	Shielded	RG-178	50 Ohms	Copper	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 92.45
		25	$ 86.22
		50	$ 79.99
		100	$ 74.65
		250	$ 70.20

Description

General part information

Q-2H0430 Series

Cable Assembly Coaxial SMP to N-Type RG-178 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
