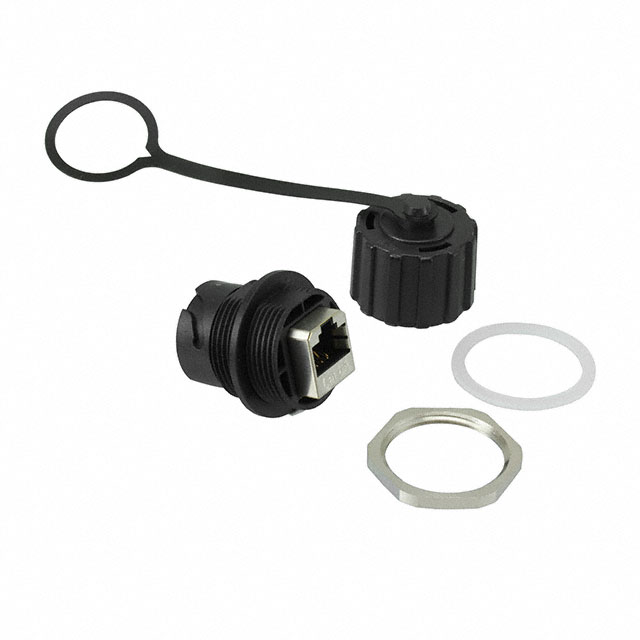

17-150014
ActiveAmphenol CONEC
COUPLER RJ45 CAT.6A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
17-150014
ActiveAmphenol CONEC
COUPLER RJ45 CAT.6A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 17-150014 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Convert From (Adapter End) | Jack, 8p8c (RJ45) |
| Convert To (Adapter End) | 8p8c (RJ45), Jack |
| Features | Circular Bayonet Coupling |
| Housing Material | Polyester |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Front Side Nut |
| Mounting Type | Bulkhead, Panel Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Ratings | Cat6a |
| Shell Material, Finish | Nickel Plated, Copper Alloy |
| Shielding | Shielded |
| Type | Coupler |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 29.37 | |
| 10 | $ 25.72 | |||
| 25 | $ 24.61 | |||
| 50 | $ 23.82 | |||
| 100 | $ 23.02 | |||
| 250 | $ 21.75 | |||
Description
General part information
17-1500 Series
Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat6a Shielded
