Specification	284514-2

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Current - UL	11 A
Header Orientation	Vertical
Housing Material	Nylon 6/6, Polyamide, PA66
Insulation Height	0.362 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	2
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Pitch	0.138 in
Positions Per Level	2
Termination Style	Solder
Type	Shrouded (4 Side), Male Pins, Header
Voltage - UL	300 V

284514 Series

Part	Pitch	Current - UL	Color	Type	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - UL	Contact Mating Finish	Header Orientation	Number of Levels	Number of Positions	Mounting Type	Positions Per Level	Termination Style	Housing Material	Contact Material	Material Flammability Rating	Insulation Height	Voltage - IEC	Current - IEC
TE Connectivity AMP Connectors 284514-8	0.138 in	11 A	Green	Header Male Pins Shrouded (4 Side)	-40 °C	110 °C	300 V	Tin	Vertical	1	8	Through Hole	8	Solder	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0	0.362 in
TE Connectivity AMP Connectors 284514-4	0.138 in	11 A	Green	Header Male Pins Shrouded (4 Side)	-40 °C	105 °C 110 °C	300 V	Tin	Vertical	1	4	Through Hole	4	Solder	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0	0.362 in	300 V	11 A
TE Connectivity AMP Connectors 284514-2	0.138 in	11 A	Green	Header Male Pins Shrouded (4 Side)	-40 °C	110 °C	300 V	Tin	Vertical	1	2	Through Hole	2	Solder	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0	0.362 in
TE Connectivity AMP Connectors 284514-7	0.138 in	11 A	Green	Header Male Pins Shrouded (4 Side)	-40 °C	110 °C	300 V	Tin	Vertical	1	7	Through Hole	7	Solder	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0	0.362 in
TE Connectivity AMP Connectors 1-284514-9	0.138 in	11 A	Green	Header Male Pins Shrouded (4 Side)	-40 °C	110 °C	300 V	Tin	Vertical	1	19	Through Hole	19	Solder	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0	0.362 in

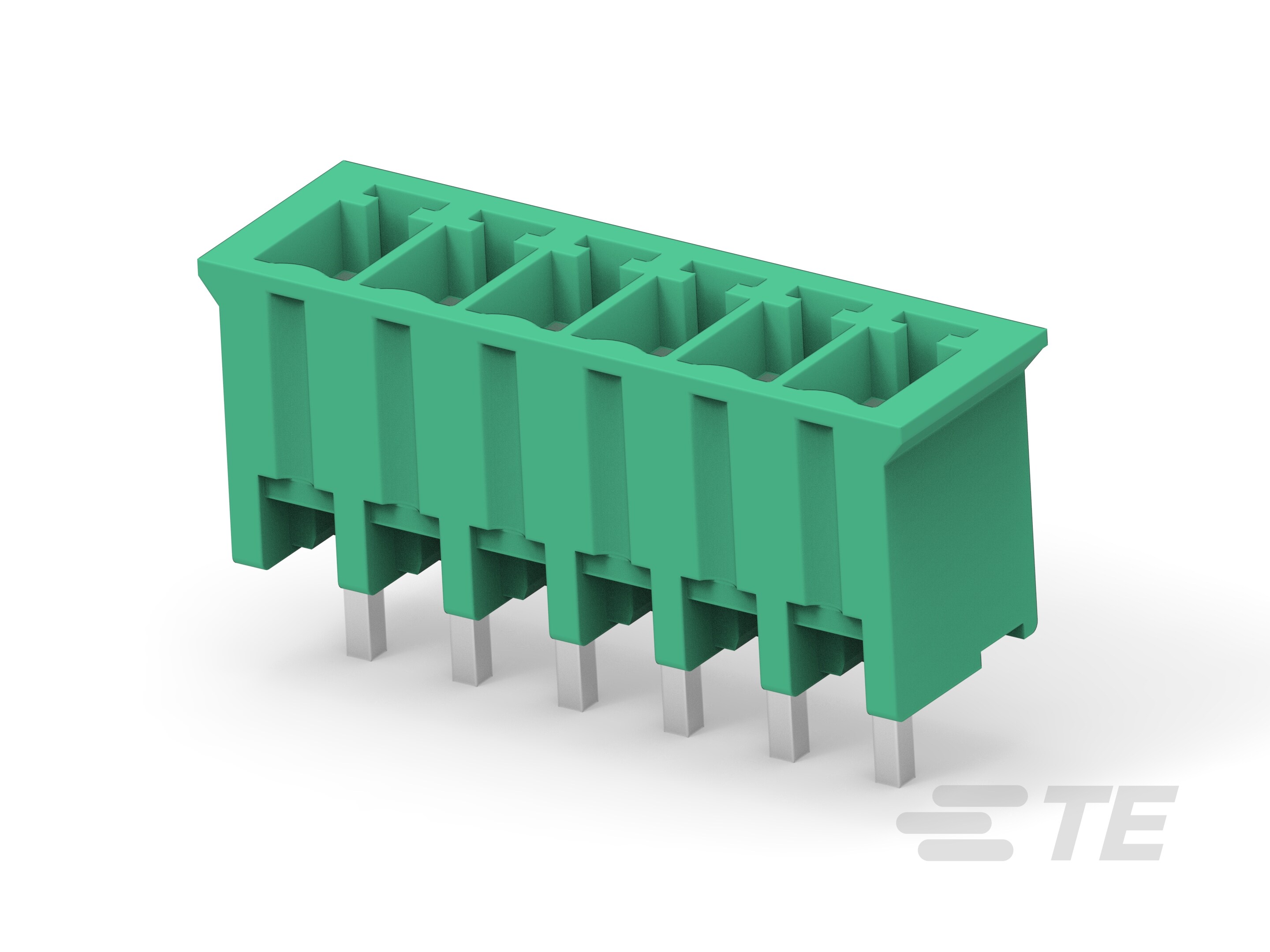

TE Connectivity AMP Connectors 284514-6	0.138 in	11 A	Green	Header Male Pins Shrouded (4 Side)	-40 °C	110 °C	300 V	Tin	Vertical	1	6	Through Hole	6	Solder	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0	0.362 in
TE Connectivity AMP Connectors 1-284514-3	0.138 in	11 A	Green	Header Male Pins Shrouded (4 Side)	-40 °C	110 °C	300 V	Tin	Vertical	1	13	Through Hole	13	Solder	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0	0.362 in
TE Connectivity AMP Connectors 1-284514-1	0.138 in	11 A	Green	Header Male Pins Shrouded (4 Side)	-40 °C	110 °C	300 V	Tin	Vertical	1	11	Through Hole	11	Solder	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0	0.362 in
TE Connectivity AMP Connectors 2-284514-0	0.138 in	11 A	Green	Header Male Pins Shrouded (4 Side)	-40 °C	110 °C	300 V	Tin	Vertical	1	20	Through Hole	20	Solder	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0	0.362 in
TE Connectivity AMP Connectors 284514-3	0.138 in	11 A	Green	Header Male Pins Shrouded (4 Side)	-40 °C	110 °C	300 V	Tin	Vertical	1	3	Through Hole	3	Solder	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0	0.362 in
