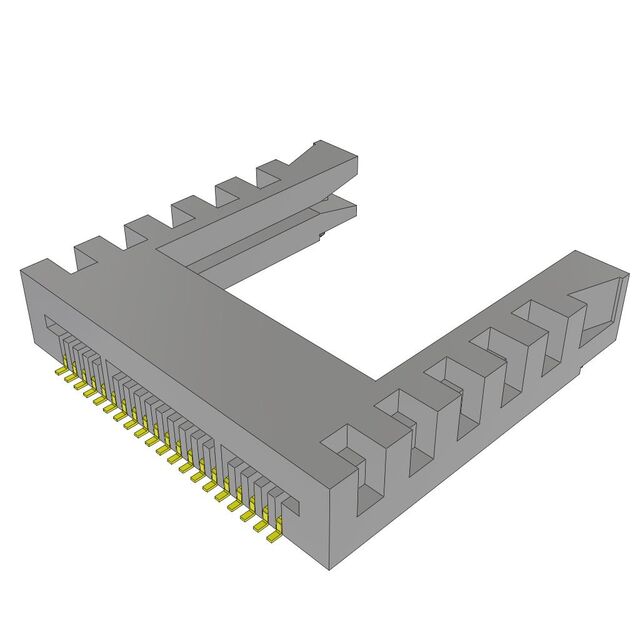

MB1-120-01-L-S-01-SL
ActiveSamtec Inc.
CONN EDGE SGL FMALE 20POS 0.039
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MB1-120-01-L-S-01-SL
ActiveSamtec Inc.
CONN EDGE SGL FMALE 20POS 0.039
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MB1-120-01-L-S-01-SL |
|---|---|
| Card Thickness | 0.031 in |
| Card Thickness | 0.79 mm |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Beryllium Copper |
| Contact Type | Loop Bellows |
| Features | Card Guide, Board Guide |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Read Out | Single |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.93 | |
| 25 | $ 6.27 | |||
| 50 | $ 5.82 | |||
| 100 | $ 5.55 | |||
| 500 | $ 5.17 | |||
Description
General part information
MB1-120 Series
20 Position Female Connector Non Specified - Single Edge Gold 0.039" (1.00mm) Black
