ISL89164FRTAZ

Active

Intersil

AND GATE BASED MOSFET DRIVER, 6A

Search across all available documentation for this part.

Active

Intersil

AND GATE BASED MOSFET DRIVER, 6A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	135	$ 2.23

General part information

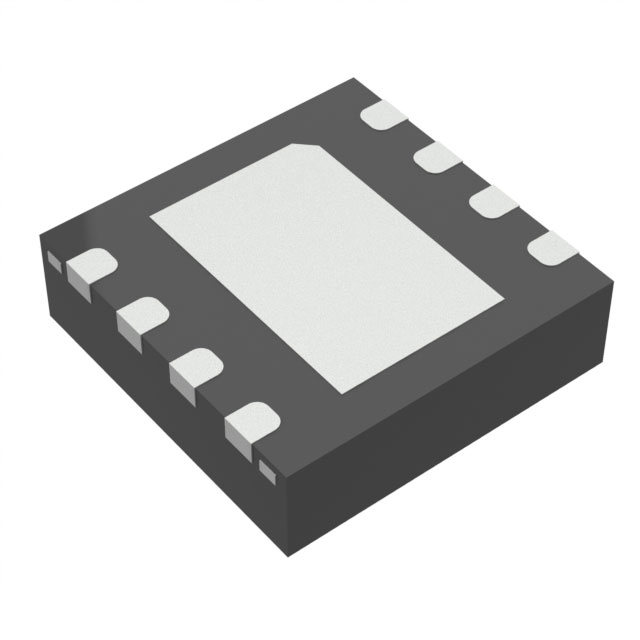

Low-Side Gate Driver IC Inverting 8-TDFN (3x3)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	ISL89164FRTAZ	ISL89164 Series

Channel Type	Independent	Independent
Current - Peak Output (Source, Sink) [custom]	6 A	6 A
Current - Peak Output (Source, Sink) [custom]	6 A	6 A
Driven Configuration	Low-Side	Low-Side
Gate Type	N-Channel MOSFET	N-Channel MOSFET
Input Type	Inverting	Inverting
Logic Voltage - VIL, VIH	-	1.85 - 9.6 V
Mounting Type	Surface Mount	Surface Mount
Number of Drivers	2	2
Operating Temperature [Max]	125 ¯C	125 ¯C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	8-WDFN Exposed Pad	8-VFDFN Exposed Pad, 8-SOIC, 8-WDFN Exposed Pad
Package / Case	-	0.154 in
Package / Case	-	3.9 mm
Rise / Fall Time (Typ) [custom]	20 ns	20 ns
Rise / Fall Time (Typ) [custom]	20 ns	20 ns
Supplier Device Package	8-TDFN (3x3)	8-TDFN (3x3), 8-SOIC-EP
Voltage - Supply [Max]	16 V	16 V
Voltage - Supply [Min]	4.5 V	4.5 - 7.5 V

AND GATE BASED MOSFET DRIVER

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Input Type	Supplier Device Package	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Driven Configuration	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Gate Type	Package / Case	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Drivers	Logic Voltage - VIL, VIH	Channel Type	Package / Case	Package / Case
Intersil ISL89164FRTCZ	7.5 V	16 V	Inverting	8-TDFN (3x3)	Surface Mount	-40 °C	125 ¯C	Low-Side	6 A	6 A	N-Channel MOSFET	8-VFDFN Exposed Pad	20 ns	20 ns	2	2.4 V, 9.6 V	Independent
Intersil ISL89164FBECZ	7.5 V	16 V	Inverting	8-SOIC-EP	Surface Mount	-40 °C	125 ¯C	Low-Side	6 A	6 A	N-Channel MOSFET	8-SOIC	20 ns	20 ns	2	2.4 V, 9.6 V	Independent	0.154 in	3.9 mm
Intersil ISL89164FRTAZ	4.5 V	16 V	Inverting	8-TDFN (3x3)	Surface Mount	-40 °C	125 ¯C	Low-Side	6 A	6 A	N-Channel MOSFET	8-WDFN Exposed Pad	20 ns	20 ns	2		Independent
Intersil ISL89164FBEAZ	4.5 V	16 V	Inverting	8-SOIC-EP	Surface Mount	-40 °C	125 ¯C	Low-Side	6 A	6 A	N-Channel MOSFET	8-SOIC	20 ns	20 ns	2		Independent	0.154 in	3.9 mm
Intersil ISL89164FBEBZ	4.5 V	16 V	Inverting	8-SOIC-EP	Surface Mount	-40 °C	125 ¯C	Low-Side	6 A	6 A	N-Channel MOSFET	8-SOIC	20 ns	20 ns	2	1.85 V, 3.15 V	Independent	0.154 in	3.9 mm
