T1270103125-000

Active

TE Connectivity Raychem Cable Protection

H10B-TSBHS-M25

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

H10B-TSBHS-M25

Technical Specifications

Parameters and characteristics for this part

Specification	T1270103125-000

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	H10B
Size / Dimension [x]	2.874 in
Size / Dimension [x]	73 mm
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	2.835 in
Size / Dimension [z]	72 mm
Style	Side Entry
Thread Size	M25

Part	Thread Size	Lock Location	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Finish	Size	Housing Material	Housing Color	Style	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]
TE Connectivity Raychem Cable Protection T1270103125-000	M25	Locking Clip (2) on Hood	Hood	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Powder Coated	H10B	Aluminum Alloy Die Cast	Gray	Side Entry	2.874 in	73 mm	43 mm	1.693 in	2.835 in	72 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

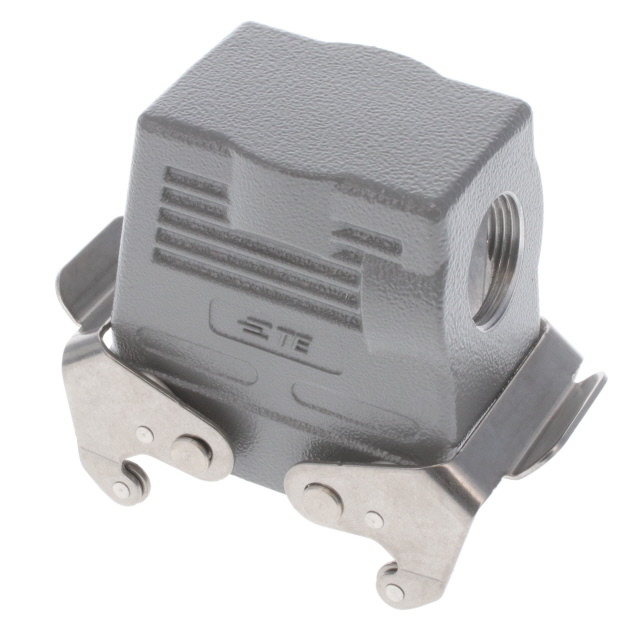

Hood Connector Side Entry M25 H10B IP65 - Dust Tight, Water Resistant
