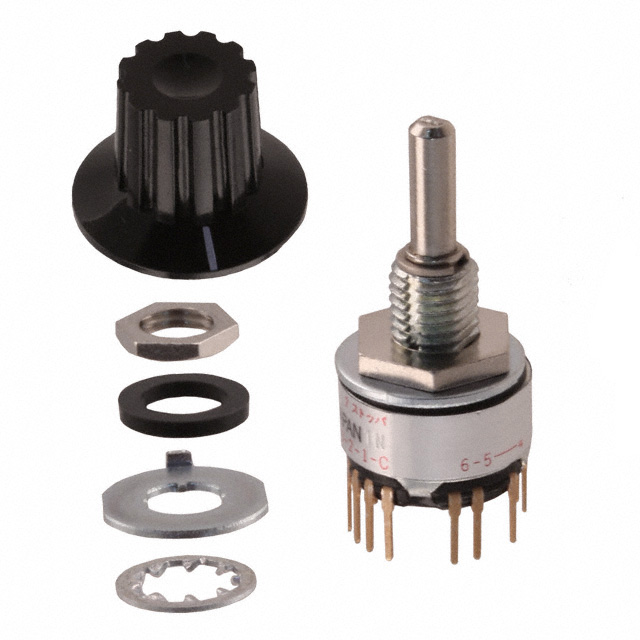

MRK206-A

Active

NKK Switches

SWITCH ROTARY 2-6POS 0.4VA 28V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ROTARY 2-6POS 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	MRK206-A

Actuator Length [x]	13 mm
Actuator Type	Knob
Angle of Throw	30 °
Circuit per Deck [custom]	DP6T
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Timing	Non-Shorting
Current Rating (Amps)	0.4 VA
Depth Behind Panel [z]	10.1 mm
Features	Process Sealed
Index Stops	Adjustable
Mounting Type	Through Hole, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	2
Number of Positions [Max]	6
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	0.25 in
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Angle of Throw	Voltage Rating - AC	Number of Positions [Max]	Number of Positions [Min]	Actuator Type	Number of Decks [custom]	Number of Poles per Deck	Contact Material	Voltage Rating - DC	Contact Finish	Index Stops	Contact Timing	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Features	Circuit per Deck [custom]	Actuator Length [x]	Depth Behind Panel [z]	Termination Style	Mounting Type
NKK Switches MRK206-A	30 °	28 V	6	2	Knob	1	2	Phosphor Bronze	28 V	Gold	Adjustable	Non-Shorting	0.25 in	0.4 VA	Process Sealed	DP6T	13 mm	10.1 mm	PC Pin	Panel Mount Through Hole
NKK Switches MRK206-BC	30 °	28 V	6	2	Knob	1	2	Phosphor Bronze	28 V	Gold	Adjustable	Non-Shorting	0.25 in	0.4 VA	Process Sealed	DP6T	14.3 mm	10.1 mm	PC Pin	Panel Mount Through Hole
NKK Switches MRK206-CE	30 °	28 V	6	2	Knob	1	2	Phosphor Bronze	28 V	Gold	Adjustable	Non-Shorting	0.25 in	0.4 VA	Process Sealed	DP6T	15.8 mm	10.1 mm	PC Pin	Panel Mount Through Hole
NKK Switches MRK206-BG	30 °	28 V	6	2	Knob	1	2	Phosphor Bronze	28 V	Gold	Adjustable	Non-Shorting	0.25 in	0.4 VA	Process Sealed	DP6T	14.3 mm	10.1 mm	PC Pin	Panel Mount Through Hole
NKK Switches MRK206-BB	30 °	28 V	6	2	Knob	1	2	Phosphor Bronze	28 V	Gold	Adjustable	Non-Shorting	0.25 in	0.4 VA	Process Sealed	DP6T	14.3 mm	10.1 mm	PC Pin	Panel Mount Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 2 ~ 6 Position DP6T 0.4VA (AC/DC) 28 VAC Panel Mount, Through Hole
