1393640-7

Active

TE Connectivity AMP Connectors

CONN DIN RCPT 48POS PCB GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	600	$ 4.88

Description

General part information

1393640 Series

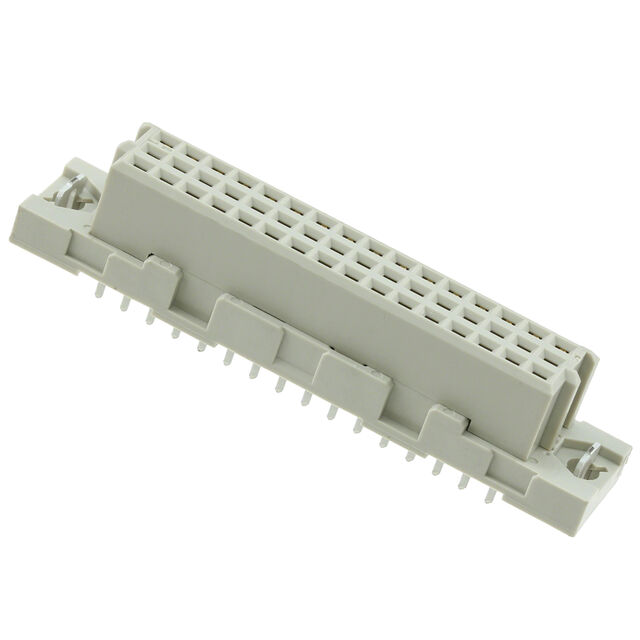

48 Position Din Connector Receptacle, Female Sockets Gold or Gold-Palladium Through Hole

Documents

Technical documentation and resources

Datasheet

Specification	1393640-7	1393640 Series

Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold, Gold-Palladium	Gold, Gold-Palladium
Level, Class	1	1, 3
Material - Insulation	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Positions	48	4 - 96
Number of Positions Loaded	All	All
Number of Positions Loaded	-	42 - 64
Number of Rows	3	2 - 3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Style	C/2	M, C/2, C, B
Style	1/2 C	1/2 C
Termination	Solder	Solder

Part	Contact Finish	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Style	Number of Rows	Number of Positions Loaded	Termination	Mounting Type	Material - Insulation	Level, Class	Material Flammability Rating	Connector Type	Pitch [x]	Pitch [x]	Number of Positions Loaded	Style
TE Connectivity AMP Connectors 4-1393640-2	Gold, Gold-Palladium	6, 42	-55 °C	125 °C	M	3	42	Solder	Through Hole, Right Angle	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	1	UL94 V-0	Receptacle, Female Sockets	2.54 mm	0.1 in
TE Connectivity AMP Connectors 8-1393640-3	Gold, Gold-Palladium	48	-55 °C	125 °C	C/2	3		Solder	Through Hole	Glass Filled, Polybutylene Terephthalate (PBT), Polyester		UL94 V-0	Receptacle, Female Sockets	2.54 mm	0.1 in	All	1/2 C
TE Connectivity AMP Connectors 9-1393640-0	Gold, Gold-Palladium	96	-55 °C	125 °C	C	3	64	Solder	Through Hole	Glass Filled, Polybutylene Terephthalate (PBT), Polyester		UL94 V-0	Receptacle, Female Sockets	2.54 mm	0.1 in
TE Connectivity AMP Connectors 8-1393640-6	Gold, Gold-Palladium	48			C	3		Solder	Through Hole	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	3		Receptacle, Female Sockets	2.54 mm	0.1 in
TE Connectivity AMP Connectors 8-1393640-5	Gold, Gold-Palladium	48	-55 °C	125 °C	C/2	3		Solder	Through Hole	Glass Filled, Polybutylene Terephthalate (PBT), Polyester		UL94 V-0	Receptacle, Female Sockets	2.54 mm	0.1 in	All	1/2 C
TE Connectivity AMP Connectors 4-1393640-3	Gold, Gold-Palladium	4, 60	-55 °C	125 °C	M	3	60	Solder	Through Hole, Right Angle	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	1	UL94 V-0	Receptacle, Female Sockets	2.54 mm	0.1 in
TE Connectivity AMP Connectors 7-1393640-8	Gold, Gold-Palladium	64	-55 °C	125 °C	B	2		Solder	Through Hole	Glass Filled, Polybutylene Terephthalate (PBT), Polyester		UL94 V-0	Receptacle, Female Sockets	2.54 mm	0.1 in	All
TE Connectivity AMP Connectors 7-1393640-4	Gold, Gold-Palladium				B	2		Solder	Through Hole	Glass Filled, Polybutylene Terephthalate (PBT), Polyester			Receptacle, Female Sockets	2.54 mm	0.1 in	All
TE Connectivity AMP Connectors 1393640-7	Gold, Gold-Palladium	48	-55 °C	125 °C	C/2	3		Solder	Through Hole	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	1	UL94 V-0	Receptacle, Female Sockets	2.54 mm	0.1 in	All	1/2 C
TE Connectivity AMP Connectors 7-1393640-9	Gold, Gold-Palladium	64			B	2		Solder	Through Hole	Glass Filled, Polybutylene Terephthalate (PBT), Polyester			Receptacle, Female Sockets	2.54 mm	0.1 in
