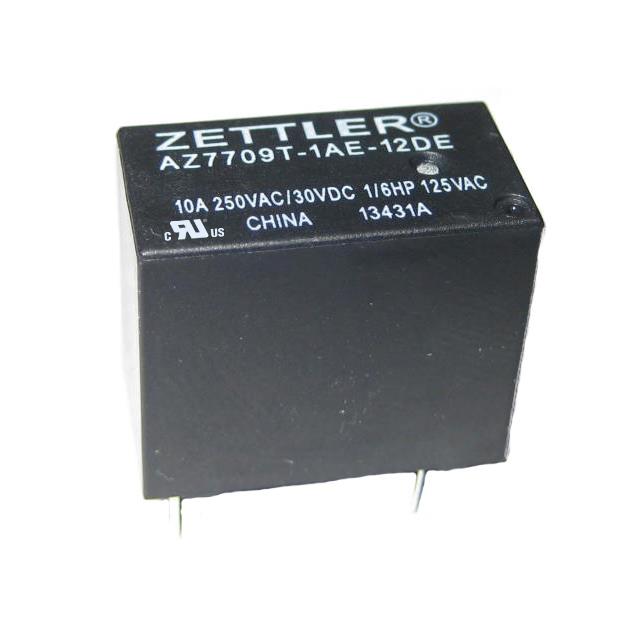

Specification	AZ7709T-1AE-12DSEF

Approval Agency	TUV, UL, cUR
Coil Current	16.7 mA
Coil Insulation	Class F
Coil Resistance	720 Ohms
Coil Type	Non Latching
Coil Voltage	12 VAC
Contact Form	SPST-NO
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	10 A
Form A Count	1
Load - Max Switching (Apparent Power)	2500 VA
Load - Max Switching (Real Power)	300 W
Mounting Type	Through Hole
Must Operate Voltage	9 VDC
Must Release Voltage	0.6 VAC
Operate Time	8 ms
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Relay Type	General Purpose
Release Time	4 ms
Seal Rating	Fully, Sealed
Switching Voltage AC (Max)	250 VAC
Switching Voltage DC (Max)	30 VDC
Termination Style	PC Pin

AZ7709T Series

Part	Operate Time	Mounting Type	Contact Material	Load - Max Switching (Apparent Power)	Load - Max Switching (Real Power)	Seal Rating	Coil Current	Coil Type	Switching Voltage AC (Max)	Switching Voltage DC (Max)	Termination Style	Must Release Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Contact Rating (Current)	Must Operate Voltage	Release Time	Approval Agency	Relay Type	Form A Count	Contact Form	Coil Voltage	Coil Resistance	Coil Insulation
American Zettler AZ7709T-1AE-18DSE	8 ms	Through Hole	Silver Tin Oxide (AgSnO)	2500 VA	300 W	Fully Sealed	11.1 mA	Non Latching	250 VAC	30 VDC	PC Pin	0.9 VDC	-40 °C	85 °C	10 A	13.5 VDC	4 ms	cUR TUV UL	General Purpose	1	SPST-NO	18 VDC	1.62 kOhms
American Zettler AZ7709T-1AE-5DE	8 ms	Through Hole	Silver Tin Oxide (AgSnO)	2500 VA	300 W	Fully Sealed	90.9 mA	Non Latching	250 VAC	30 VDC	PC Pin	0.25 VDC	-40 °C	105 °C	10 A	3.5 VDC	4 ms	cUR TUV UL	General Purpose	1	SPST-NO	5 V	55 Ohms	Class F
American Zettler AZ7709T-1AE-48DS	8 ms	Through Hole	Silver Tin Oxide (AgSnO)	2500 VA	300 W			Non Latching	250 VAC	30 VDC	PC Pin	2.4 V	-40 °C	85 °C	10 A		4 ms	cUR TUV UL	General Purpose	1	SPST-NO	48 V
American Zettler AZ7709T-1AE-18DF	8 ms	Through Hole	Silver Tin Oxide (AgSnO)	2500 VA	300 W		25 mA	Non Latching	250 VAC	30 VDC	PC Pin	0.9 VDC	-40 °C	105 °C	10 A	12.6 VDC	4 ms	cUR TUV UL	General Purpose	1	SPST-NO	18 VDC	720 Ohms	Class F
American Zettler AZ7709T-1AE-9DS	8 ms	Through Hole	Silver Tin Oxide (AgSnO)	2500 VA	300 W		22.5 mA	Non Latching	250 VAC	30 VDC	PC Pin	0.45 VDC	-40 °C	85 °C	10 A	6.75 VDC	4 ms	cUR TUV UL	General Purpose	1	SPST-NO	9 VDC	400 Ohms
American Zettler AZ7709T-1AE-24DSE	8 ms	Through Hole	Silver Tin Oxide (AgSnO)	2500 VA	300 W	Fully Sealed	8.6 mA	Non Latching	250 VAC	30 VDC	PC Pin	1.2 V	-40 °C	85 °C	10 A	18 VDC	4 ms	cUR TUV UL	General Purpose	1	SPST-NO	24 VDC	2.8 kOhms
American Zettler AZ7709T-1AE-18DSF	8 ms	Through Hole	Silver Tin Oxide (AgSnO)	2500 VA	300 W		11.1 mA	Non Latching	250 VAC	30 VDC	PC Pin	0.9 VDC	-40 °C	105 °C	10 A	13.5 VDC	4 ms	cUR TUV UL	General Purpose	1	SPST-NO	18 VDC	1.62 kOhms	Class F
American Zettler AZ7709T-1AE-12DSEF	8 ms	Through Hole	Silver Tin Oxide (AgSnO)	2500 VA	300 W	Fully Sealed	16.7 mA	Non Latching	250 VAC	30 VDC	PC Pin	0.6 VAC	-40 °C	105 °C	10 A	9 VDC	4 ms	cUR TUV UL	General Purpose	1	SPST-NO	12 VAC	720 Ohms	Class F
American Zettler AZ7709T-1AE-6DSEF	8 ms	Through Hole	Silver Tin Oxide (AgSnO)	2500 VA	300 W	Fully Sealed	33.3 mA	Non Latching	250 VAC	30 VDC	PC Pin	0.3 VDC	-40 °C	105 °C	10 A	4.5 VDC	4 ms	cUR TUV UL	General Purpose	1	SPST-NO	6 VAC	180 Ohms	Class F
American Zettler AZ7709T-1AE-5DF	8 ms	Through Hole	Silver Tin Oxide (AgSnO)	2500 VA	300 W		90.9 mA	Non Latching	250 VAC	30 VDC	PC Pin	0.25 VDC	-40 °C	105 °C	10 A	3.5 VDC	4 ms	cUR TUV UL	General Purpose	1	SPST-NO	5 V	55 Ohms	Class F
