DEB-B056RC4S

Active

Knowles Dielectric Labs

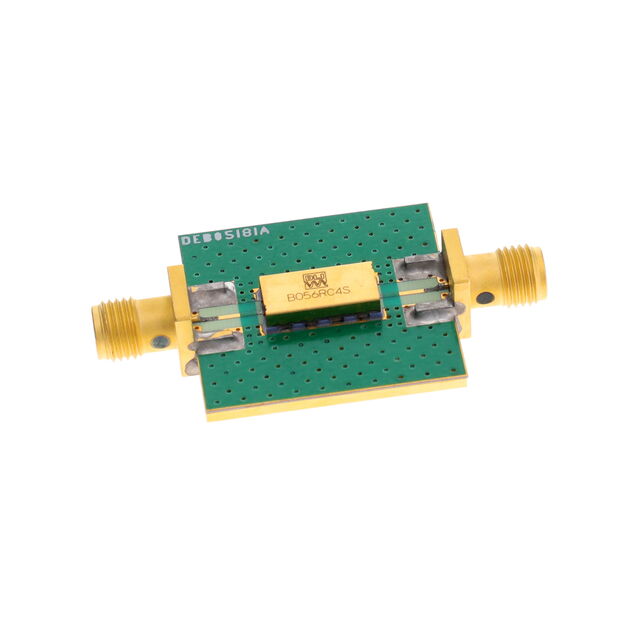

EVAL BOARD FOR B056RC4S

Search across all available documentation for this part.

Active

Knowles Dielectric Labs

EVAL BOARD FOR B056RC4S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

B056RC4S - Filter 5.6GHz Evaluation Board

Technical documentation and resources

No documents available

Specification	DEB-B056RC4S	B056RC Series

Bandwidth	-	4 GHz
Filter Type	-	Band Pass
For Use With/Related Products	B056RC4S	B056RC4S
Frequency	5.6 GHz	5.6 - 6 GHz
Height (Max)	-	2.62 mm
Height (Max)	-	0.103 in
Insertion Loss	-	2.5 - 3 dB
Mounting Type	-	Surface Mount
Package / Case	-	8-SMD, No Lead, 3-SMD, No Lead
Size / Dimension	-	0.45 in
Size / Dimension	-	0.23 in
Size / Dimension	-	5.84 mm
Size / Dimension	-	0.45 in
Supplied Contents	Board(s)	Board(s)
Type	Filter	Filter

Part	Filter Type	Package / Case	Height (Max) [Max]	Height (Max) [Max]	Insertion Loss	Frequency	Bandwidth	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Supplied Contents	For Use With/Related Products
Knowles Dielectric Labs B056RC4S	Band Pass	8-SMD, No Lead	2.62 mm	0.103 in	3 dB	6 GHz	4 GHz	Surface Mount	0.45 in	0.23 in	5.84 mm	0.45 in
Knowles Dielectric Labs B056RC4S-T	Band Pass	3-SMD, No Lead	2.62 mm	0.103 in	2.5 dB	5.6 GHz	4 GHz	Surface Mount	0.45 in	0.23 in	5.84 mm	0.45 in
Knowles Dielectric Labs DEB-B056RC4S						5.6 GHz							Filter	Board(s)	B056RC4S
