T520W476M016AHE045

Active

KEMET

CAPACITOR,47UF,16VDC,20-% TOL,20+% TOL ROHS COMPLIANT: NO

Search across all available documentation for this part.

Active

KEMET

CAPACITOR,47UF,16VDC,20-% TOL,20+% TOL ROHS COMPLIANT: NO

Technical Specifications

Parameters and characteristics for this part

Specification	T520W476M016AHE045

Capacitance	47 µF
ESR (Equivalent Series Resistance)	45 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	W
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	16 V

Part	Manufacturer Size Code	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Features	Tolerance	Lifetime @ Temp.	Type	Voltage - Rated	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Capacitance	ESR (Equivalent Series Resistance)
KEMET T520W336M016ATE045	W	1.5 mm	0.059 "	4.3 mm	0.287 "	7.3 mm	0.169 "	General Purpose	20 %	2000 Hrs	Molded	16 V	Surface Mount	105 ░C	-55 °C	7343 Metric	2917	33 ÁF	45 mOhm
KEMET T520W476M016AHE045	W	1.5 mm	0.059 "	4.3 mm	0.287 "	7.3 mm	0.169 "	General Purpose	20 %	2000 Hrs	Molded	16 V	Surface Mount	105 ░C	-55 °C	7343 Metric	2917	47 µF	45 mOhm
KEMET T520W686M010ATE040	W	1.5 mm	0.059 "	4.3 mm	0.287 "	7.3 mm	0.169 "	General Purpose	20 %	2000 Hrs	Molded	10 V	Surface Mount	105 ░C	-55 °C	7343 Metric	2917	68 µF	40 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

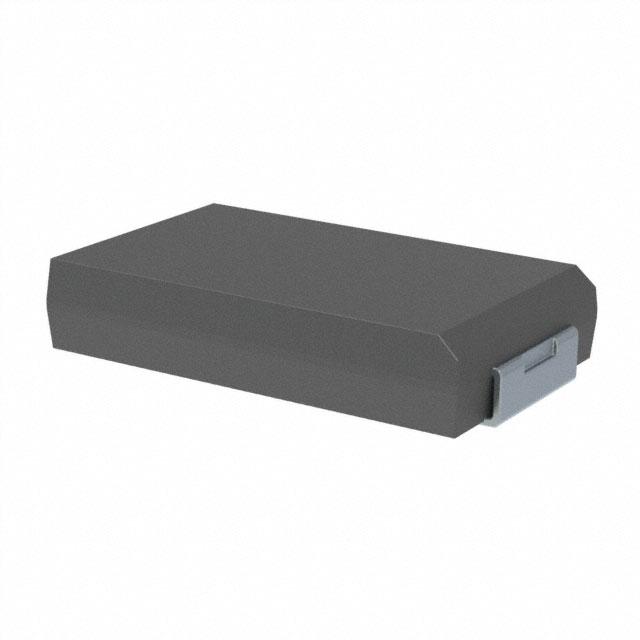

47 µF Molded Tantalum Polymer Capacitor 16 V 2917 (7343 Metric) 45mOhm @ 100kHz
