Description
General part information

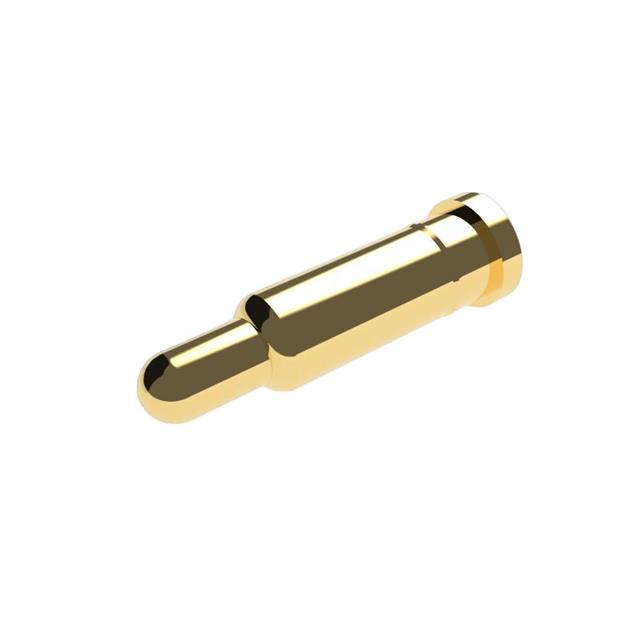

PH-MVF-43 Series
Contact Spring Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PH-MVF-4360 |
|---|---|
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Type | Sleeve, Plunger |
| Current Rating | 3 A |
| Mating Cycles | 1000000 cycles |
| Maximum Working Height | 0.236 in |
| Minimum Working Height | 0.181 in |
| Mounting Type | Surface Mount |
| Operating Force - Initial | 70 gf |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pad Layout Diameter | 0.071 in |
| Pad Layout Shape | Circular |
| Plunger Diameter | 0.039 in |
| Recommended Working Height | 0.197 in |
