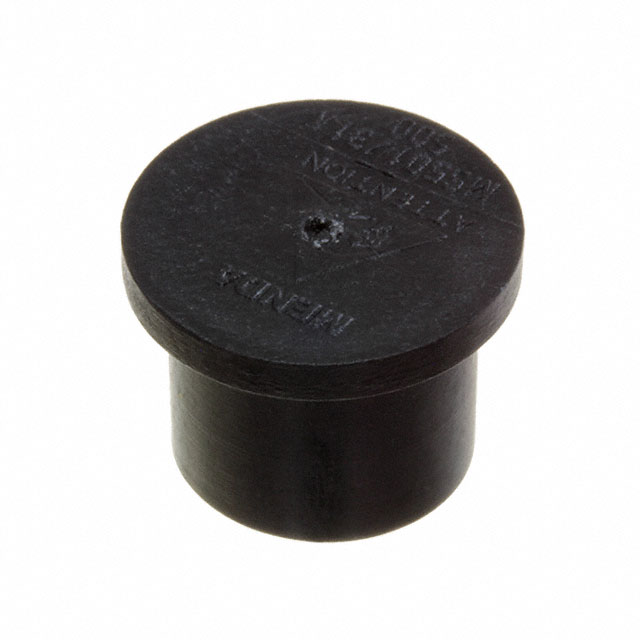

34234

Active

MENDA/EasyBraid

CONN COVER 9R BLACK

Search across all available documentation for this part.

Active

MENDA/EasyBraid

CONN COVER 9R BLACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	34234	- Series

Accessory Type	Cap (Cover)	Cap (Cover)
Color	Black	Black
For Use With/Related Products	Circular Connectors	Circular Connectors, MS90376 and MIL PRF 5501/31A or 32A Connectors
Material	Composite	Composite
Shell Size - Insert	9R	28R, 16R, 9R, 16Y, 12Y, 18R, 19R, 22R, 24Y, 6R, 8Y, 32R, 25Y, 5R, 24R, 10Y, 22Y, 36R, 8R, 36Y, 20Y, 4R, 18Y, 12R, 20R, 32Y
Shell Size - Insert	-	0.785 - 0.845 "

CONN COVER 28R BLACK

Part	Accessory Type	For Use With/Related Products	Material	Shell Size - Insert	Color	Shell Size - Insert [diameter]
MENDA/EasyBraid 34223	Cap (Cover)	Circular Connectors	Composite	28R	Black
MENDA/EasyBraid 34210	Cap (Cover)	MS90376 and MIL PRF 5501/31A or 32A Connectors	Composite			0.785 ", 0.845 "
MENDA/EasyBraid 34211	Cap (Cover)	Circular Connectors	Composite	16R	Black
MENDA/EasyBraid 34234	Cap (Cover)	Circular Connectors	Composite	9R	Black
MENDA/EasyBraid 34212	Cap (Cover)	Circular Connectors	Composite	16Y	Black
MENDA/EasyBraid 34224	Cap (Cover)	Circular Connectors	Composite		Black
MENDA/EasyBraid 34208	Cap (Cover)	Circular Connectors	Composite	12Y	Black
MENDA/EasyBraid 34213	Cap (Cover)	Circular Connectors	Composite	18R	Black
MENDA/EasyBraid 34215	Cap (Cover)	Circular Connectors	Composite	19R	Black
MENDA/EasyBraid 34218	Cap (Cover)	Circular Connectors	Composite	22R	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Cap (Cover) 9R Black

Technical documentation and resources

No documents available
