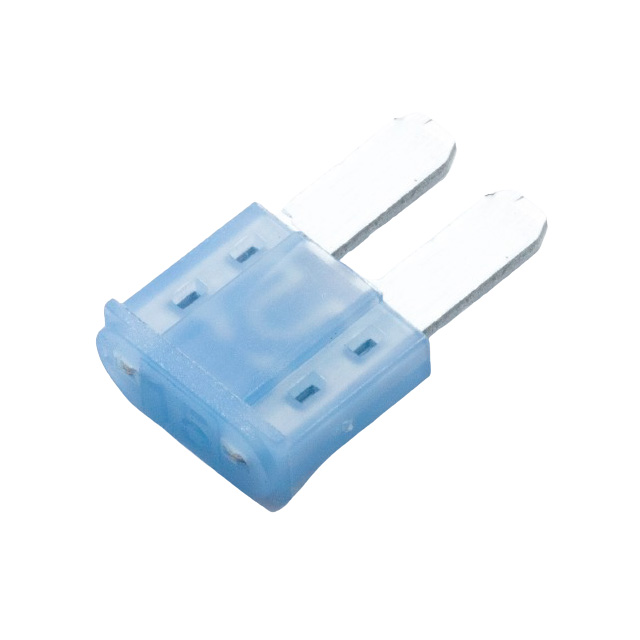

ANT-15A

Active

OptiFuse

FUSE AUTO 15A 32VDC BLADE MICRO

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 15A 32VDC BLADE MICRO

Technical Specifications

Parameters and characteristics for this part

Specification	ANT-15A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Blue
Current Rating (Amps)	15 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Micro
Response Time	Fast Blow
Size / Dimension [x]	0.358 in
Size / Dimension [x]	9.1 mm
Size / Dimension [y]	0.15 "
Size / Dimension [y]	3.8 mm
Size / Dimension [z]	7.9 mm
Size / Dimension [z]	0.311 "
Voltage Rating - DC	32 V

FUSE AUTO 15A 32VDC BLADE MICRO

Part	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Color	Package / Case	Mounting Type	Response Time	Approval Agency	Fuse Type	Voltage Rating - DC	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
OptiFuse ANT-15A	15 A	1 kA	Blue	Blade, Micro	Requires Holder	Fast Blow	ISO, SAE	Automotive	32 V	0.15 "	0.358 in	7.9 mm	0.311 "	3.8 mm	9.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 A AC 32 V DC Fuse Automotive Requires Holder Blade, Micro
