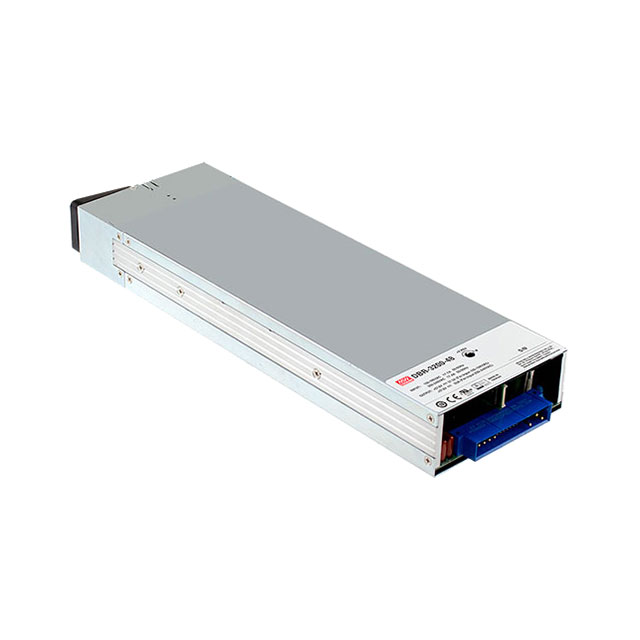

DBR-3200-24
ActiveMEAN WELL USA Inc.
BATT CHARGER ENCLOSED 24V 110A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DBR-3200-24
ActiveMEAN WELL USA Inc.
BATT CHARGER ENCLOSED 24V 110A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DBR-3200-24 |
|---|---|
| Approval Agency | TUV, cURus, EAC, CE, CB |
| Battery Cell Size | 24 V |
| Battery Chemistry | Lithium-Ion, Lead Acid |
| Charge Current - Max [Max] | 110 A |
| Features | LED Indicator |
| Mounting Type | Rack Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power - Max [Max] | 3200 W |
| Size / Dimension [x] | 325 mm |
| Size / Dimension [x] | 12.8 in |
| Size / Dimension [y] | 107 mm |
| Size / Dimension [y] | 4.21 in |
| Size / Dimension [z] | 41 mm |
| Size / Dimension [z] | 1.61 " |
| Termination Style | Terminal Block |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC, 370 VDC |
| Voltage - Input [Min] | 90 VAC, 127 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 547.50 | |
Description
General part information
DBR-3200 Series
Enclosed Battery Charger 24V 110A 24V
