ACPSC04-41SEKWA

Active

Kingbright

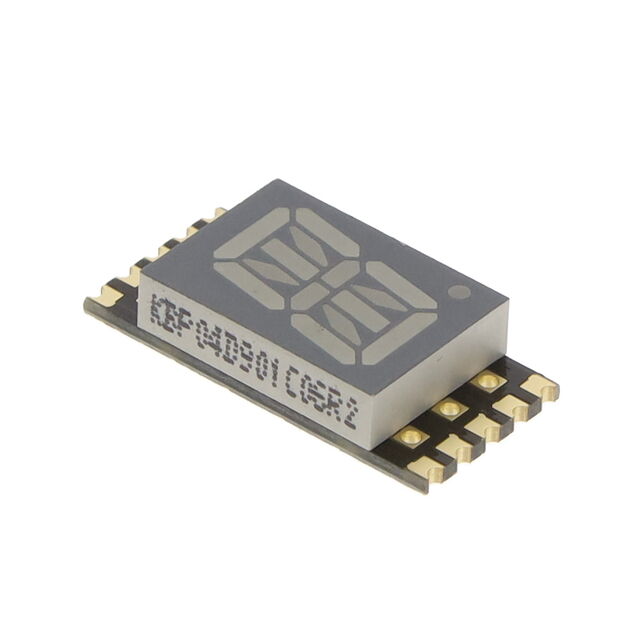

DISPLAY 14SEG 0.4" SGL ORG 16SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACPSC04-41SEKWA

Active

Kingbright

DISPLAY 14SEG 0.4" SGL ORG 16SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ACPSC04-41SEKWA	ACPSC04 Series

Color	-	Green, Yellow, Red
Common Pin	Common Cathode	Common Cathode
Current - Test	20 mA	20 mA
Digit/Alpha Size	10.16 mm	10.16 mm
Digit/Alpha Size [custom]	0.4 in	0.4 in
Display Type	14-Segment, Alphanumeric	14-Segment, Alphanumeric
Millicandela Rating	44 mcd	11 - 46 mcd
Number of Characters [custom]	1	1
Package / Case	16-SMD, No Lead	16-SMD, No Lead
Power Dissipation (Max) [Max]	75 mw	75 mw
Size / Dimension	-	9.2 mm
Size / Dimension	-	3.75 mm
Size / Dimension	-	13 mm
Size / Dimension [x]	0.148 "	0.148 "
Size / Dimension [x]	3.75 mm	0.148 - 3.75 "
Size / Dimension [y]	9.3 mm	0.362 - 9.3 in
Size / Dimension [y]	0.366 "	0.366 "
Size / Dimension [z]	0.512 "	0.512 "
Size / Dimension [z]	13 mm	0.512 - 13 "
Voltage - Forward (Vf) (Typ)	2.1 V	1.85 - 2.1 V
Wavelength - Peak	610 nm	590 - 660 nm

ACPSC04 Series

DISPLAY 14SEG 0.4" SGL GRN 16SMD

Part	Current - Test	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Power Dissipation (Max) [Max]	Color	Digit/Alpha Size	Digit/Alpha Size [custom]	Display Type	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Number of Characters [custom]	Common Pin	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Peak
Kingbright ACPSC04-41CGKWA	20 mA	0.362 in	0.512 "	9.2 mm	3.75 mm	0.148 "	13 mm	75 mw	Green	10.16 mm	0.4 in	14-Segment, Alphanumeric	11 mcd	2.1 V	1	Common Cathode	16-SMD, No Lead
Kingbright ACPSC04-41SYKWA	20 mA	9.3 mm	13 mm			3.75 mm		75 mw	Yellow	10.16 mm	0.4 in	14-Segment, Alphanumeric	46 mcd	2 V	1	Common Cathode	16-SMD, No Lead	0.512 "	0.366 "	0.148 "	590 nm
Kingbright ACPSC04-41SURKWA	20 mA	9.3 mm	13 mm			3.75 mm		75 mw	Red	10.16 mm	0.4 in	14-Segment, Alphanumeric	36 mcd	1.95 V	1	Common Cathode	16-SMD, No Lead	0.512 "	0.366 "	0.148 "	650 nm
Kingbright ACPSC04-41SEKWA	20 mA	9.3 mm	13 mm			3.75 mm		75 mw		10.16 mm	0.4 in	14-Segment, Alphanumeric	44 mcd	2.1 V	1	Common Cathode	16-SMD, No Lead	0.512 "	0.366 "	0.148 "	610 nm
Kingbright ACPSC04-41SRWA	20 mA	9.3 mm	13 mm			3.75 mm		75 mw	Red	10.16 mm	0.4 in	14-Segment, Alphanumeric	15 mcd	1.85 V	1	Common Cathode	16-SMD, No Lead	0.512 "	0.366 "	0.148 "	660 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.60
		10	$ 2.54
		100	$ 2.08
	Digi-Reel®	1	$ 3.60
		10	$ 2.54
		100	$ 2.08
	Tape & Reel (TR)	400	$ 2.08
		800	$ 1.70
		1200	$ 1.61
		2000	$ 1.55

Description

General part information

ACPSC04 Series

Display Modules - LED Character and Numeric Orange 14-Segment, Alphanumeric 1 Character Common Cathode 2.1V 20mA 0.512" H x 0.366" W x 0.148" D (13.00mm x 9.30mm x 3.75mm) 16-SMD, No Lead
