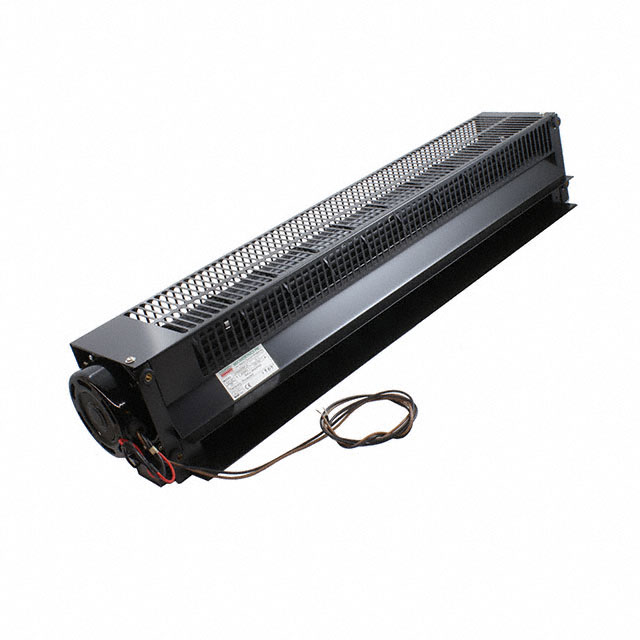

UF9060CBP12H-L

Active

Mechatronics Fan Group

FAN BLWR CF 120VAC 740X150X130MM

Search across all available documentation for this part.

Active

Mechatronics Fan Group

FAN BLWR CF 120VAC 740X150X130MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF9060CBP12H-L	UF9060 Series

Air Flow	530 CFM	530 CFM
Air Flow	14.84 mł/min	14.84 mł/min
Approval Agency	CE, TUV	CE, TUV
Bearing Type	Ball	Ball
Current Rating (Amps)	1.25 A	0.7 - 1.25 A
Fan Type	Blower, Cross Flow	Blower, Cross Flow
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Aluminum	Aluminum
Material - Frame	Steel	Steel
Noise	54 dB	54 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	160 W	160 W
RPM	2100 RPM	2100 RPM
Size / Dimension [x]	740 mm	740 mm
Size / Dimension [z]	130 mm	130 mm
Static Pressure	107.1 Pa	107.1 Pa
Static Pressure	0.43 in H2O	0.43 in H2O
Termination	2 Wire Leads	2 Wire Leads
Voltage - Rated	120 VAC	120 - 230 VAC
Weight	11 lbs	11 lbs
Weight	5 kg	5 kg
Width [y]	125 mm	125 mm

FAN BLWR CF 120VAC 740X150X130MM

Part	Power (Watts)	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Weight	Weight	Features	Width [y]	Fan Type	Approval Agency	RPM	Static Pressure	Static Pressure	Size / Dimension [x]	Size / Dimension [z]	Material - Blade	Termination	Air Flow	Air Flow	Noise	Voltage - Rated	Material - Frame
Mechatronics Fan Group UF9060CBP12H-L	160 W	1.25 A	70 °C	70 °C	-40 °C	-40 °C	Ball	11 lbs	5 kg	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	125 mm	Blower, Cross Flow	CE, TUV	2100 RPM	107.1 Pa	0.43 in H2O	740 mm	130 mm	Aluminum	2 Wire Leads	530 CFM	14.84 mł/min	54 dB	120 VAC	Steel
Mechatronics Fan Group UF9060CBP23H-L	160 W	0.7 A	70 °C	70 °C	-40 °C	-40 °C	Ball	11 lbs	5 kg	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	125 mm	Blower, Cross Flow	CE, TUV	2100 RPM	107.1 Pa	0.43 in H2O	740 mm	130 mm	Aluminum	2 Wire Leads	530 CFM	14.84 mł/min	54 dB	230 VAC	Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Cross Flow 120VAC Rectangular - 740mm L x 130mm H Ball 530.0 CFM (14.84m³/min) 2 Wire Leads
