FWE030024B-10A

Active

Inventus Power

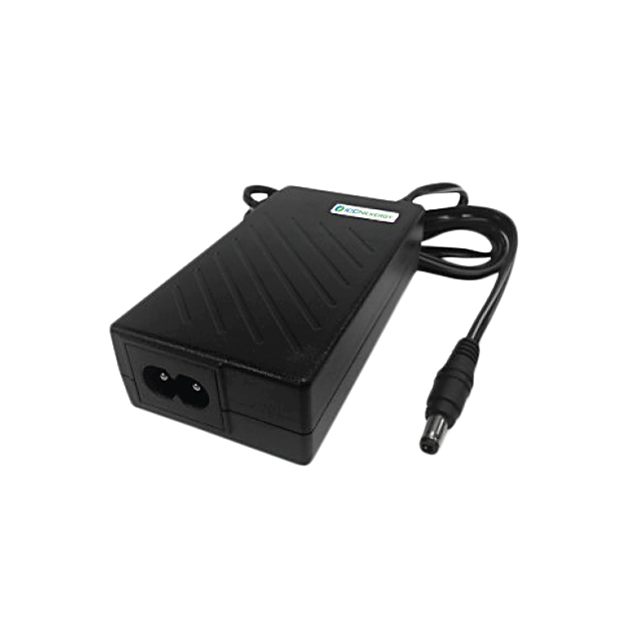

AC/DC DESKTOP ADAPTER 24V 30W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 24V 30W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 30 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	FWE030024B-10A	FWE030024 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cTUVus, CE, CCC, CB	cTUVus, CE, CCC, CB, TUV, GS, cURus
Cord Length	1.22 m	1.22 m
Cord Length	48 in	48 in
Current - Output (Max) [Max]	1.25 A	1.25 A
Efficiency	Level V	Level V, Level VI
Form	Desktop (Class II)	Desktop (Class II), Desktop (Class I)
Input Connector	IEC 320-C8	IEC 320-C8, IEC 320-C6
Input Type	Cord	Cord
No Load Power Consumption	300 mW	300 mW
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm	2.5 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	30 W	30 W
Region Utilized	International	International
Size / Dimension [x]	3.53 "	3.53 "
Size / Dimension [x]	89.6 mm	89.6 mm
Size / Dimension [y]	48.8 mm	48.8 mm
Size / Dimension [y]	1.92 in	1.92 in
Size / Dimension [z]	0.99 "	0.99 "
Size / Dimension [z]	25.2 mm	25.2 mm
Standard Number	60950-1, 62368-1	60950-1, 62368-1
Voltage - Output	24 V	24 V
Weight	160.12 g	160.12 g
Weight	0.353 lb	0.353 lb

AC/DC DESKTOP ADAPTER 24V 30W

Part	Form	Weight	Weight	Power (Watts)	Applications	Output Connector [diameter]	Output Connector [x]	Output Connector	Polarization	Input Type	Standard Number	No Load Power Consumption	Voltage - Output	Approval Agency	Input Connector	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Cord Length	Cord Length	Region Utilized	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]
Inventus Power FWE030024B-10A	Desktop (Class II)	160.12 g	0.353 lb	30 W	ITE (Commercial)	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	Positive Center	Cord	60950-1, 62368-1	300 mW	24 V	CB, CCC, CE, cTUVus	IEC 320-C8	60 °C	0 °C	Level V	1.22 m	48 in	International	1.25 A	3.53 "	0.99 "	89.6 mm	25.2 mm	48.8 mm	1.92 in
Inventus Power FWE030024A-10A	Desktop (Class I)	160.12 g	0.353 lb	30 W	ITE (Commercial)	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	Positive Center	Cord		300 mW	24 V	CB, CE, cURus, GS, TUV	IEC 320-C6	60 °C	0 °C	Level VI	1.22 m	48 in	International	1.25 A	3.53 "	0.99 "	89.6 mm	25.2 mm	48.8 mm	1.92 in
