1.5KE10CA-TP
ActiveMicro Commercial Co
INTERFACE
Deep-Dive with AI
Search across all available documentation for this part.
1.5KE10CA-TP
ActiveMicro Commercial Co
INTERFACE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1.5KE10CA-TP |
|---|---|
| Applications | Telecom |
| Bidirectional Channels [custom] | 1 |
| Current - Peak Pulse (10/1000µs) | 104.8 A |
| Grade | Automotive |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | DO-201AE, Axial |
| Power - Peak Pulse | 1.5 kW |
| Power - Peak Pulse | 1500 W |
| Power Line Protection | False |
| Supplier Device Package | DO-201AE |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 9.5 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 14.5 V |
| Voltage - Reverse Standoff (Typ) | 8.55 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1200 | $ 0.19 | |
1.5KE10 Series
INTERFACE
| Part | Voltage - Breakdown (Min) [Min] | Applications | Bidirectional Channels [custom] | Power Line Protection | Supplier Device Package | Package / Case | Voltage - Clamping (Max) @ Ipp [Max] | Mounting Type | Grade | Voltage - Reverse Standoff (Typ) | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power - Peak Pulse | Operating Temperature [Min] | Operating Temperature [Max] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Micro Commercial Co 1.5KE10CA-TP | 9.5 V | Telecom | 1 | DO-201AE | DO-201AE, Axial | 14.5 V | Through Hole | Automotive | 8.55 V | 104.8 A | 1.5 kW | 1500 W | -55 °C | 175 ░C | Zener |
Description
General part information
1.5KE10 Series

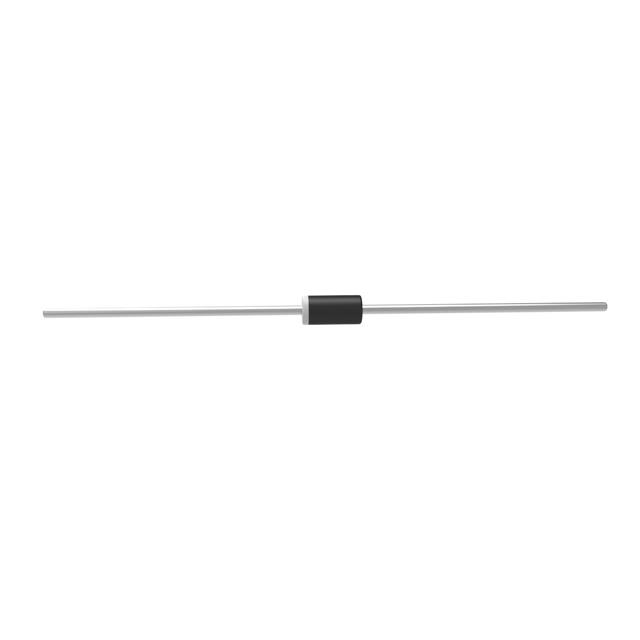

14.5V Clamp 104.8A Ipp Tvs Diode Through Hole DO-201AE
