TMC2300-LA
ActiveAnalog Devices Inc./Maxim Integrated
LOW VOLTAGE STEPPER MOTOR DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC2300-LA
ActiveAnalog Devices Inc./Maxim Integrated
LOW VOLTAGE STEPPER MOTOR DRIVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC2300-LA | TMC2300 Series |
|---|---|---|
| Applications | Medical, Automation Control, Printer | Medical, Automation Control, Printer, Industrial |
| Contents | - | Board(s) |
| Current - Output | 1.2 A | 1.2 A |
| Embedded | - | MCU, 32-Bit |
| Embedded | - | True |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Interface | UART, Step/Direction | UART, Step/Direction |
| Motor Type - AC, DC | Brushed DC | Brushed DC |
| Motor Type - Stepper | Bipolar | Bipolar |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Half Bridge (4), Half Bridge (2) | Half Bridge (4), Half Bridge (2), Step/Direction |

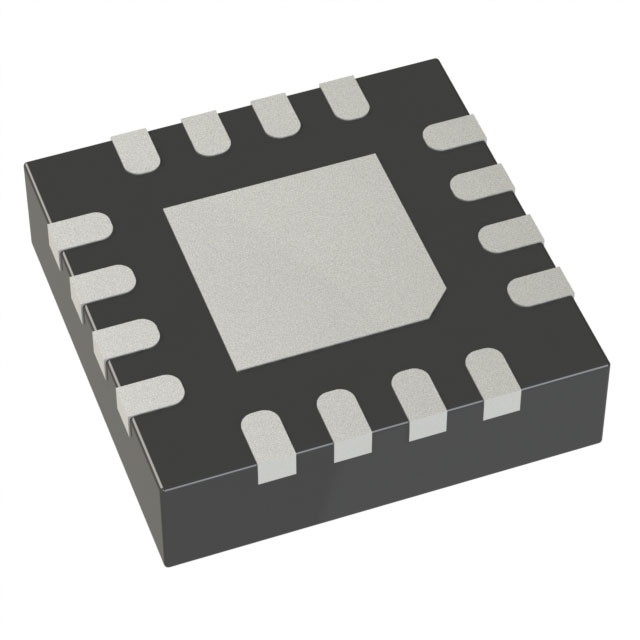

| Package / Case | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad |
| Primary Attributes | - | Motors (Stepper) |
| Secondary Attributes | - | Graphical User Interface (GUI) |
| Step Resolution [Max] | 1 | 1 |
| Step Resolution [Min] | 0.00390625 | 0.00390625 |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 20-QFN (3x3) | 20-QFN (3x3) |
| Technology | Power MOSFET | Power MOSFET |
| Type | - | Power Management |
| Utilized IC / Part | - | TMC2300 |
| Voltage - Load [Max] | 11 V | 1.95 - 11 V |
| Voltage - Load [Min] | 2 V | 1.65 - 2 V |
| Voltage - Supply [Max] | 11 V | 11 V |
| Voltage - Supply [Min] | 2 V | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.89 | |
| 10 | $ 3.26 | |||
| 25 | $ 2.84 | |||
| 80 | $ 2.42 | |||
| 230 | $ 2.15 | |||
| 440 | $ 2.01 | |||
| 945 | $ 1.88 | |||
| Tube | 1 | $ 3.60 | ||
| 10 | $ 3.23 | |||
| 25 | $ 3.05 | |||
| 100 | $ 2.65 | |||
| 490 | $ 2.25 | |||
| 980 | $ 1.90 | |||
| 2940 | $ 1.80 | |||
| 5390 | $ 1.74 | |||
TMC2300 Series
EVAL BOARD FOR TMC2300
| Part | Supplied Contents | Primary Attributes | Type | Secondary Attributes | Utilized IC / Part | Contents | Applications | Motor Type - Stepper | Package / Case | Output Configuration | Interface | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage - Load [Min] | Voltage - Load [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplier Device Package | Technology | Motor Type - AC, DC | Function | Current - Output | Step Resolution [Max] | Step Resolution [Min] | Embedded | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC2300-MOTOR-EVAL | Board(s) | Motors (Stepper) | Power Management | Graphical User Interface (GUI) | TMC2300 | ||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2300-BOB | Board(s) | Motors (Stepper) | Power Management | TMC2300 | Board(s) | ||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2300-LA | Automation Control, Medical, Printer | Bipolar | 20-VFQFN Exposed Pad | Half Bridge (2), Half Bridge (4) | Step/Direction, UART | -40 °C | 125 ¯C | Surface Mount | 2 V | 11 V | 11 V | 2 V | 20-QFN (3x3) | Power MOSFET | Brushed DC | Driver - Fully Integrated, Control and Power Stage | 1.2 A | 1 | 0.00390625 | ||||||||
Analog Devices Inc./Maxim Integrated TMC2300-THERMO-BOB | Board(s) | Motors (Stepper) | Power Management | TMC2300 | |||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2300-EVAL-KIT | Board(s) | Motors (Stepper) | Power Management | TMC2300 | 32-Bit, MCU | ||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2300-LA-T | Automation Control, Industrial, Medical | 20-VFQFN Exposed Pad | Step/Direction | Step/Direction, UART | -40 °C | 125 ¯C | Surface Mount | 1.65 V | 1.95 V | 11 V | 2 V | 20-QFN (3x3) | Power MOSFET | Driver - Fully Integrated, Control and Power Stage | 1.2 A | 1 | 0.00390625 |
Description
General part information
TMC2300 Series
Bipolar Motor Driver Power MOSFET Step/Direction, UART 20-QFN (3x3)
Documents
Technical documentation and resources
