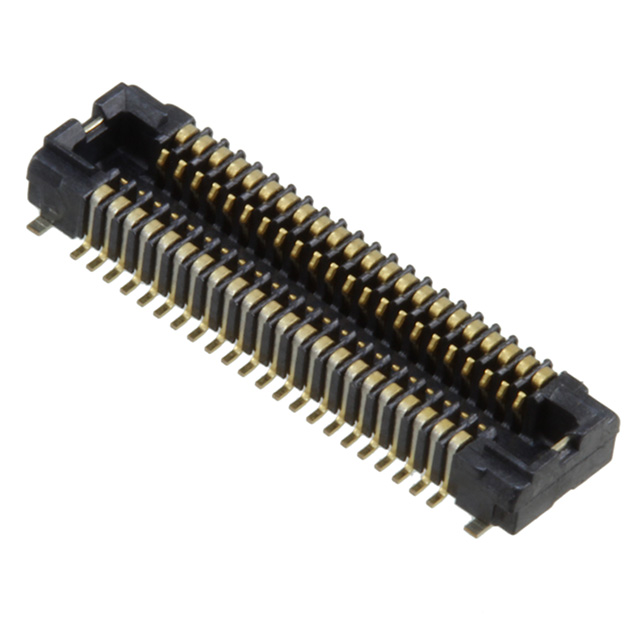

AXT344124

Obsolete

Panasonic Electric Works

CONN SOCKET 44POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 44POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT344124

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm, 2 mm
Mounting Type	Surface Mount
Number of Positions	44
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Connector Type	Mated Stacking Heights	Contact Finish	Height Above Board [z]	Height Above Board [z]	Number of Positions	Features
Panasonic Electric Works AXT344114	Surface Mount	2	0.016 in	0.4 mm	Outer Shroud Contacts Socket	1.5 mm	Gold	0.057 in	1.45 mm	44	Board Guide Solder Retention
Panasonic Electric Works AXT344124	Surface Mount	2	0.016 in	0.4 mm	Outer Shroud Contacts Socket	1.5 mm 2 mm	Gold	0.057 in	1.45 mm	44	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

44 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
