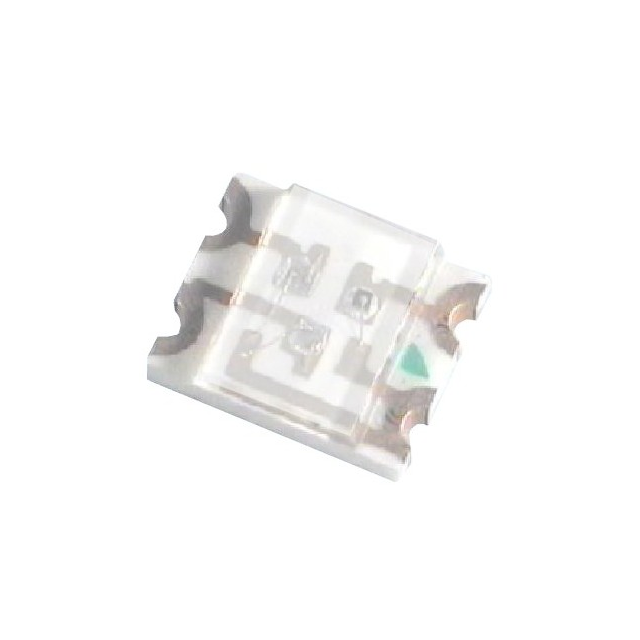

EAST3226RGBA0
ActiveEverlight Electronics Co Ltd
LED RGB CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EAST3226RGBA0
ActiveEverlight Electronics Co Ltd
LED RGB CLEAR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EAST3226RGBA0 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] [z] | 1.1 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 2.6 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 70 mcd |
| Millicandela Rating [custom] | 180 mcd |
| Millicandela Rating [custom] | 140 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.6 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V, 3.3 V, 2 V |
| Wavelength - Dominant [custom] | 624 nm |
| Wavelength - Dominant [custom] | 470 nm |
| Wavelength - Dominant [custom] | 525 nm |
| Wavelength - Peak [custom] | 632 nm |
| Wavelength - Peak [custom] | 518 nm |
| Wavelength - Peak [custom] | 468 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.60 | |
| 10 | $ 1.01 | |||
| 100 | $ 0.75 | |||
| 500 | $ 0.69 | |||
| 1000 | $ 0.57 | |||
| Digi-Reel® | 1 | $ 1.60 | ||
| 10 | $ 1.01 | |||
| 100 | $ 0.75 | |||
| 500 | $ 0.69 | |||
| 1000 | $ 0.57 | |||
| Tape & Reel (TR) | 2000 | $ 0.54 | ||
| 6000 | $ 0.53 | |||
| 10000 | $ 0.51 | |||
Description
General part information
EAST3226 Series
Red, Green, Blue (RGB) 624nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 1210 (3225 Metric)
