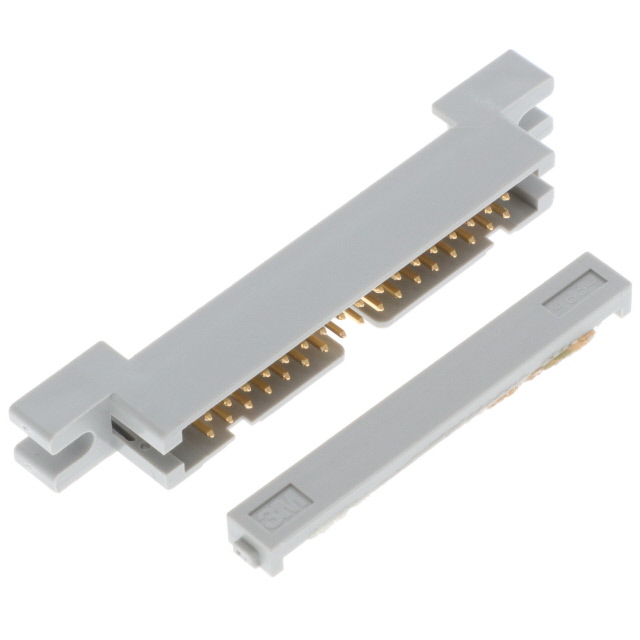

IDC CONNECTOR, IDC PLUG, MALE, 2.54 MM, 2 ROW, 34 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

4634-6000

Active

3M (TC)

IDC CONNECTOR, IDC PLUG, MALE, 2.54 MM, 2 ROW, 34 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4634-6000

Cable Termination	IDC
Color	Gray
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Male Pin
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	34
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	Solid, Stranded
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	26 AWG
Wire Type	Discrete or Ribbon Cable

4634 Series

Part	Contact Finish	Row Spacing [x]	Row Spacing	Features	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge	Number of Rows	Cable Termination	Color	Wire Type	Contact Type	Mounting Type	Fastening Type
3M (TC) 4634-6005	Gold	0.1 in	2.54 mm	Feed Through	2.54 mm	0.1 in	0.76 Ám	30 Áin	34	Plug	26 AWG	28 AWG	Solid Stranded	2	IDC	Gray	Discrete or Ribbon Cable	Male Pin	Free Hanging (In-Line)
3M (TC) 4634-6205	Gold	0.1 in	2.54 mm	Feed Through	2.54 mm	0.1 in	0.76 Ám	30 Áin	34	Plug	26 AWG	28 AWG	Solid Stranded	2	IDC	Gray	Discrete or Ribbon Cable	Male Pin	Free Hanging (In-Line)	Latch Lock/Eject Hooks Short
3M (TC) 4634-6305	Gold	0.1 in	2.54 mm	Feed Through	2.54 mm	0.1 in	0.76 Ám	30 Áin	34	Plug	26 AWG	28 AWG	Solid Stranded	2	IDC	Gray	Discrete or Ribbon Cable	Male Pin	Free Hanging (In-Line)	Latch Lock/Eject Hooks Long
3M (TC) 4634-6000	Gold	0.1 in	2.54 mm	Feed Through	2.54 mm	0.1 in	0.76 Ám	30 Áin	34	Plug	26 AWG	28 AWG	Solid Stranded	2	IDC	Gray	Discrete or Ribbon Cable	Male Pin	Free Hanging (In-Line)
3M (TC) 4634-7200	Gold	0.1 in	2.54 mm	Closed End	2.54 mm	0.1 in	0.76 Ám	30 Áin	34	Plug	26 AWG	28 AWG	Solid Stranded	2	IDC	Gray	Discrete or Ribbon Cable	Male Pin	Free Hanging (In-Line)	Latch Lock/Eject Hooks Short
3M (TC) 4634-730D	Gold	0.1 in	2.54 mm	Closed End	2.54 mm	0.1 in	0.76 Ám	30 Áin	34	Plug	26 AWG	28 AWG	Solid Stranded	2	IDC	Gray	Discrete or Ribbon Cable	Male Pin	Free Hanging (In-Line)	Latch Lock/Eject Hooks Long
3M (TC) 4634-7300	Gold	0.1 in	2.54 mm	Closed End	2.54 mm	0.1 in	0.76 Ám	30 Áin	34	Plug	26 AWG	28 AWG	Solid Stranded	2	IDC	Gray	Discrete or Ribbon Cable	Male Pin	Free Hanging (In-Line)	Latch Lock/Eject Hooks Long

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.33
		10	$ 11.79
		25	$ 10.66
		50	$ 9.90
		100	$ 9.20
		250	$ 8.39
		500	$ 7.84
		1000	$ 7.34
Newark	Each	1	$ 14.38
		10	$ 13.74
		25	$ 12.52
		50	$ 11.88
		100	$ 11.53
		250	$ 10.31
		500	$ 9.73
		1000	$ 8.56

Description

General part information

4634 Series

The 4634-6000 is a 50-way 2-row 0.100 x 0.100-inch Wire-to-board Plug for 0.050-inch pitch cable with gold-plated copper alloy contacts. The 4600 series connector comes with a glass filled polyester (PBT) insulator and accommodates 28/26AWG solid and stranded wire. It has mounting flange (standard, RIA E1 & C1 apply), open end cover (daisy chaining/bussing - standard) and military polarization (with 3518 polarizing key) for 40 contacts. The wiremount plug has been shrouded to protect against physical and chemical pin damage.
