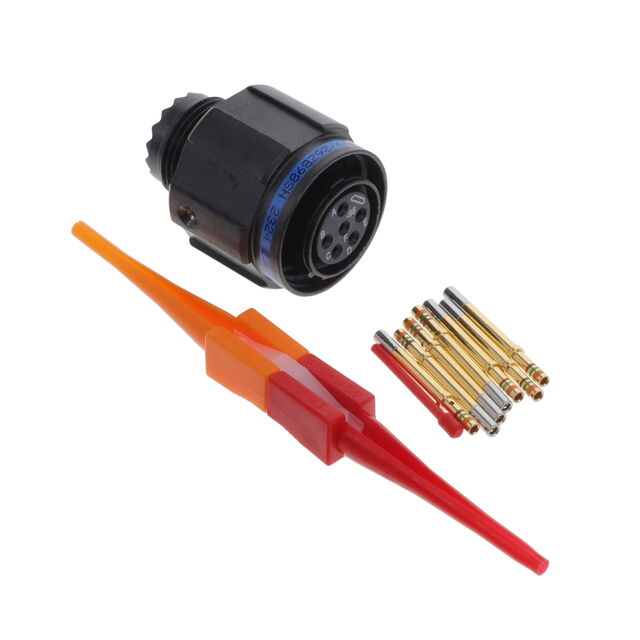

D38999/26ZB98SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 6POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 6POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26ZB98SN

Applications	Aviation, Aerospace, Marine, Military
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Features	Coupling Nut, Self Locking
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Black Zinc Nickel
Shell Material	Aluminum
Shell Size - Insert	11-98
Shell Size, MIL	B
Shielding	Unshielded, Shielded
Termination	Crimp
Voltage Rating	600 VAC, 850 V

Part	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Shell Size, MIL	Mounting Type	Grade	Applications	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Color	Connector Type	Shielding	Termination	Contact Material	Contact Finish - Mating	Qualification	Shell Size - Insert	Ingress Protection	Orientation	Current Rating (Amps)	Voltage Rating	Insert Material	Number of Positions	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Amphenol Aerospace Operations D38999/26ZB5PN	Black Zinc Nickel	-65 ░C	347 °F	Aluminum	B	Free Hanging (In-Line)	Military	Aviation Marine Military	Metal	1.27 µm	50 µin	Coupling Nut Self Locking	Black	Male Pins Plug	Unshielded	Crimp	Copper Alloy	Gold	MIL-DTL-38999 Series III	11-5	Environment Resistant	N
Amphenol Aerospace Operations D38999/26ZB98SN	Black Zinc Nickel	-65 ░C	347 °F	Aluminum	B	Free Hanging (In-Line)	Military	Aerospace Aviation Marine Military	Metal	1.27 µm	50 µin	Coupling Nut Self Locking	Black	Female Sockets Plug	Shielded Unshielded	Crimp	Copper Alloy	Gold	MIL-DTL-38999 Series III	11-98	Environment Resistant	N	7.5 A	600 VAC 850 V	Thermoplastic	6
Amphenol Aerospace Operations D38999/26ZB35SN	Black Zinc Nickel	-65 ░C	347 °F	Aluminum	B	Free Hanging (In-Line)	Military	Aerospace Aviation Marine Military	Metal	1.27 µm	50 µin	Coupling Nut Self Locking	Black	Female Sockets Plug	Shielded Unshielded	Crimp	Copper Alloy	Gold	MIL-DTL-38999 Series III		Environment Resistant	N	5 A	400 VAC 500 V	Thermoplastic	13	11	35

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug, Female Sockets Crimp
