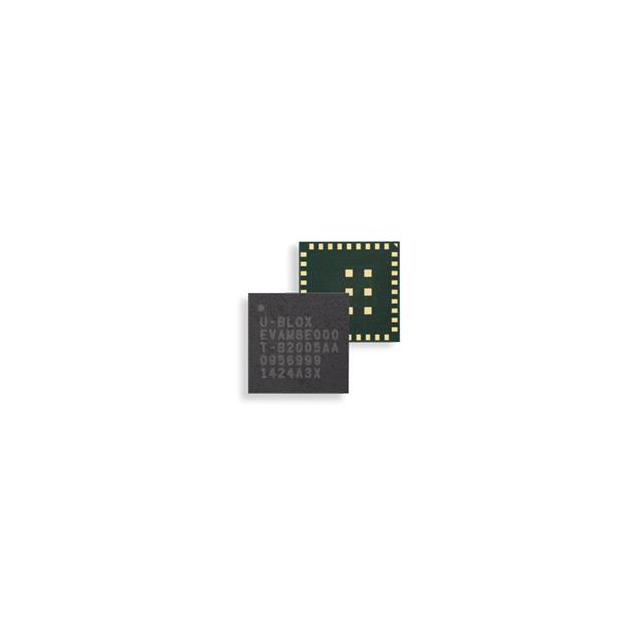

EVA-M8M-1

Unknown

u-blox

RF TXRX MODULE NAVIGATION SMD

Search across all available documentation for this part.

Unknown

u-blox

RF TXRX MODULE NAVIGATION SMD

Technical Specifications

Parameters and characteristics for this part

Specification	EVA-M8M-1

Antenna Type	Antenna Not Included
Current - Receiving	17 mA
Current - Transmitting	17 mA
Data Rate	9.6 kBaud
Frequency	1.575 GHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	43-SMD Module
Protocol	GPS, Galileo, GLONASS, Beidou, GNSS
RF Family/Standard	Navigation
Serial Interfaces	UART, SPI, USB, I2C
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.65 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	RF Family/Standard	Frequency	Protocol	Antenna Type	Current - Receiving	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Transmitting	Serial Interfaces	Mounting Type	Data Interface	Applications	Modulation or Protocol	Sensitivity
u-blox EVA-M8M-1	85 °C	-40 °C	9.6 kBaud	Navigation	1.575 GHz	Beidou Galileo GLONASS GNSS GPS	Antenna Not Included	17 mA	43-SMD Module	1.65 V	3.6 V	17 mA	I2C SPI UART USB	Surface Mount
u-blox EVA-M8E-0	85 °C	-40 °C			1.561 GHz 1.575 GHz 1.602 GHz			29 mA	43-TFLGA	2.7 V	3.6 V			Surface Mount	DDC I2C SPI UART USB	General Purpose	BeiDou Galileo GLONASS GPS QSZZ	-160 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Navigation BeiDou, Galileo, GLONASS, GPS, GNSS Transceiver Module 1.575GHz Antenna Not Included Surface Mount
