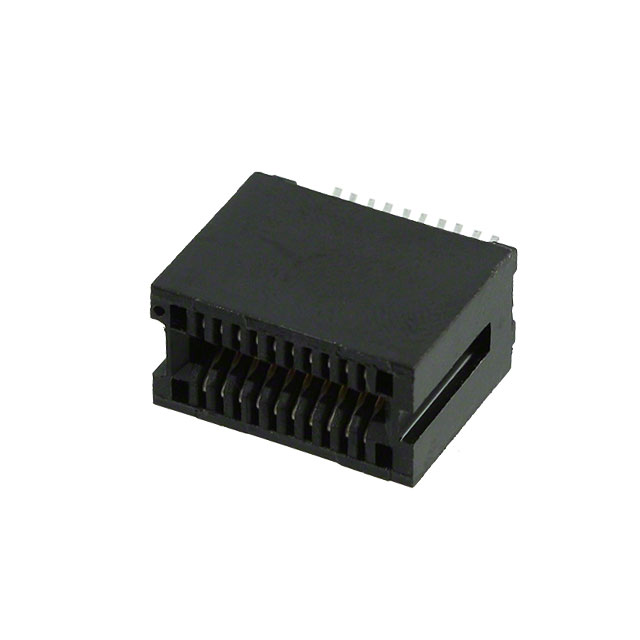

RBB10DHRN
ActiveSullins Connector Solutions
CONN EDGE DUAL FMALE 20POS 0.050
Deep-Dive with AI
Search across all available documentation for this part.
RBB10DHRN
ActiveSullins Connector Solutions
CONN EDGE DUAL FMALE 20POS 0.050
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RBB10DHRN |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Phosphor Bronze |
| Contact Type | Hairpin Bellows |
| Features | Card Extender |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Read Out | Dual |
| Termination | Solder |
RBB10 Series
| Part | Pitch [x] | Pitch [x] | Material - Insulation | Card Type | Contact Type | Number of Positions/Bay/Row [custom] | Contact Material | Gender | Contact Finish | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Color | Mounting Type | Features | Card Thickness | Card Thickness | Flange Feature | Flange Feature | Flange Feature | Number of Positions | Number of Rows | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 0.05 in | 1.27 mm | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Cantilever | 10 | Phosphor Bronze | Female | Gold | Solder | 125 °C | -65 ░C | Dual | Black | Board Edge Straddle Mount | Card Extender | 0.062 in | 1.57 mm | Flush Mount Top Opening Unthreaded | 0.125 " | 3.18 mm | 20 | 2 | 10 Áin | 0.25 Ám |
Sullins Connector Solutions | 0.05 in | 1.27 mm | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Cantilever | 10 | Phosphor Bronze | Female | Gold | Solder Staggered | 125 °C | -65 ░C | Dual | Black | Through Hole | 0.062 in | 1.57 mm | 4-40 Flush Mount Threaded Insert Top Opening | 20 | 2 | 10 Áin | 0.25 Ám | |||
Sullins Connector Solutions | 0.05 in | 1.27 mm | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Hairpin Bellows | 10 | Phosphor Bronze | Female | Gold | Solder Staggered | 125 °C | -65 ░C | Dual | Black | Through Hole Right Angle | 0.062 in | 1.57 mm | Flush Mount Top Opening Unthreaded | 0.125 " | 3.18 mm | 20 | 2 | 10 Áin | 0.25 Ám | |
Sullins Connector Solutions | 0.05 in | 1.27 mm | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Cantilever | 10 | Phosphor Bronze | Female | Gold | Solder | 125 °C | -65 ░C | Dual | Black | Board Edge Straddle Mount | Card Extender | 0.062 in | 1.57 mm | Straddle Mount Opening Unthreaded | 0.078 in | 1.98 mm | 20 | 2 | 10 Áin | 0.25 Ám |
Sullins Connector Solutions | 0.05 in | 1.27 mm | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Hairpin Bellows | 10 | Phosphor Bronze | Female | Gold | Solder | 125 °C | -65 ░C | Dual | Black | Surface Mount | 0.062 in | 1.57 mm | 20 | 2 | 10 Áin | 0.25 Ám | ||||
Sullins Connector Solutions | 0.05 in | 1.27 mm | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Cantilever | 10 | Phosphor Bronze | Female | Gold | Solder Staggered | 125 °C | -65 ░C | Dual | Black | Through Hole | 0.062 in | 1.57 mm | 20 | 2 | 10 Áin | 0.25 Ám | ||||
Sullins Connector Solutions | 0.05 in | 1.27 mm | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Hairpin Bellows | 10 | Phosphor Bronze | Female | Gold | Solder | 125 °C | -65 ░C | Dual | Black | Through Hole | 0.062 in | 1.57 mm | Flush Mount Top Opening Unthreaded | 0.125 " | 3.18 mm | 20 | 2 | 10 Áin | 0.25 Ám | |
Sullins Connector Solutions | 0.05 in | 1.27 mm | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Hairpin Bellows | 10 | Phosphor Bronze | Female | Gold | Solder | 125 °C | -65 ░C | Dual | Black | Board Edge Straddle Mount | Card Extender | 0.062 in | 1.57 mm | 20 | 2 | 10 Áin | 0.25 Ám | |||
Sullins Connector Solutions | 0.05 in | 1.27 mm | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Hairpin Bellows | 10 | Phosphor Bronze | Female | Gold | Solder Staggered | 125 °C | -65 ░C | Dual | Black | Through Hole Right Angle | 0.062 in | 1.57 mm | 4-40 Flush Mount Threaded Insert Top Opening | 20 | 2 | 10 Áin | 0.25 Ám | |||
Sullins Connector Solutions | 0.05 in | 1.27 mm | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Cantilever | 10 | Phosphor Bronze | Female | Gold | Solder | 125 °C | -65 ░C | Dual | Black | Board Edge Straddle Mount | Card Extender | 0.062 in | 1.57 mm | 20 | 2 | 10 Áin | 0.25 Ám |
