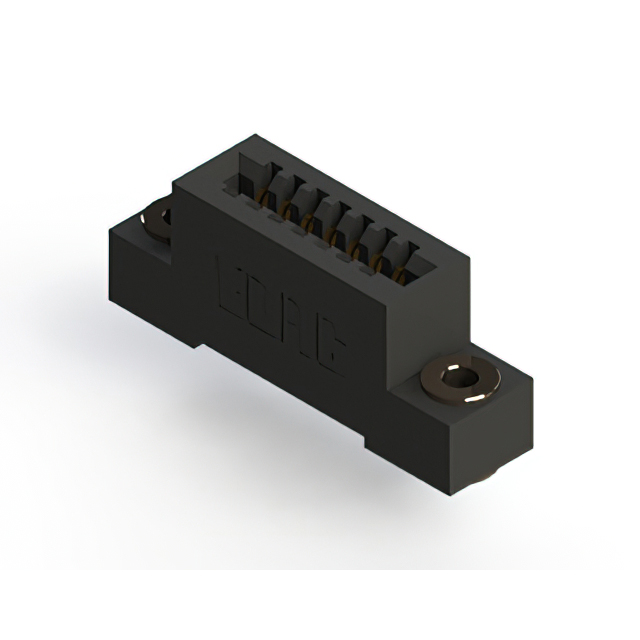

392-007-524-103
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
392-007-524-103
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-007-524-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 7 |
| Number of Positions/Bay/Row [custom] | 7 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
392-007 Series
| Part | Gender | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Termination | Contact Type | Termination Rows | Material - Insulation | Card Type | Pitch [x] | Pitch [x] | Read Out | Contact Material | Contact Finish | Number of Positions/Bay/Row [custom] | Mounting Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 7 | Solder | Cantilever | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | Copper Alloy | Gold | 7 | Through Hole | Black |
EDAC Inc. | Female | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 7 | Wire Wrap | Cantilever | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | Copper Alloy | Gold | 7 | Through Hole | Black | ||
EDAC Inc. | Female | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 7 | Wire Wrap | Cantilever | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | Copper Alloy | Gold | 7 | Through Hole | Black |
EDAC Inc. | Female | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 7 | Wire Wrap | Cantilever | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | Copper Alloy | Gold | 7 | Through Hole | Black |
EDAC Inc. | Female | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 7 | Solder Wire Wrap | Cantilever | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | Copper Alloy | Gold | 7 | Through Hole Right Angle | Black | |||
EDAC Inc. | Female | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 7 | Solder Wire Wrap | Cantilever | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | Copper Alloy | Gold | 7 | Through Hole Right Angle | Black |
EDAC Inc. | Female | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 7 | Solder | Cantilever | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | Copper Alloy | Gold | 7 | Through Hole | Black |
EDAC Inc. | Female | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 7 | Solder | Cantilever | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | Copper Alloy | Gold | 7 | Through Hole | Black |
EDAC Inc. | Female | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 7 | Solder | Cantilever | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | Copper Alloy | Gold | 7 | Through Hole | Black |
EDAC Inc. | Female | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 7 | Solder | Cantilever | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | Copper Alloy | Gold | 7 | Through Hole | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
392-007 Series
7 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
