116-87-432-41-003101
ActivePreci-Dip

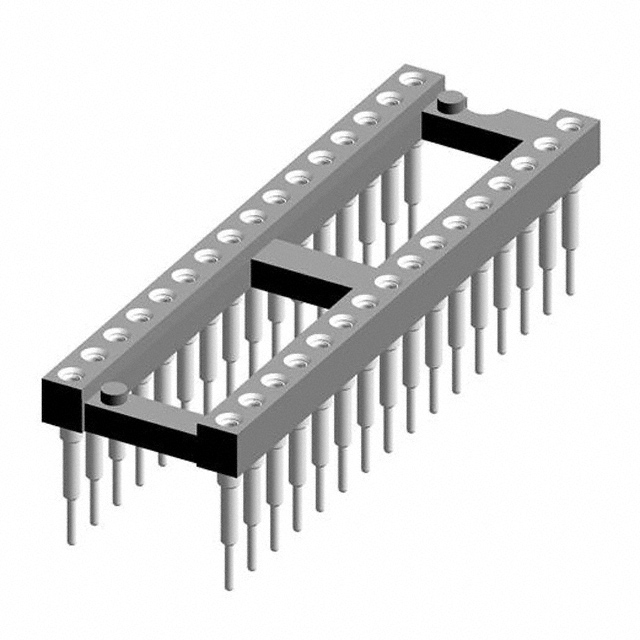

CONN IC DIP SOCKET 32POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
116-87-432-41-003101
ActivePreci-Dip
CONN IC DIP SOCKET 32POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 116-87-432-41-003101 | 116-87 Series |
|---|---|---|
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | Flash | Flash |
| Contact Material - Mating | Beryllium Copper | Beryllium Copper |
| Contact Material - Post [custom] | Brass | Brass |
| Contact Resistance | 10 mOhm | 10 mOhm |
| Current Rating (Amps) | 1 A | 1 A |
| Features | Open Frame, Elevated | Open Frame, Elevated |
| Housing Material | Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT) | Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions or Pins (Grid) | - | 2 - 48 |
| Number of Positions or Pins (Grid) | - | 10 |
| Number of Positions or Pins (Grid) | - | 4 |
| Number of Positions or Pins (Grid) | - | 2 |
| Number of Positions or Pins (Grid) | - | 6 - 50 |
| Number of Positions or Pins (Grid) | - | 3 - 20 |
| Number of Positions or Pins (Grid) | - | 25 |
| Number of Positions or Pins (Grid) [custom] | 2 x 16 | 2 x 16, 2 x 5 |
| Number of Positions or Pins (Grid) [custom] | 32 | 32 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Pitch - Post | 2.54 mm | 2.54 mm |
| Pitch - Post | 0.1 in | 0.1 in |
| Termination | Solder | Solder |
| Termination Post Length | 3.18 mm | 3.18 mm |
| Termination Post Length | 0.125 in | 0.125 in |
| Type | 0.4 in | 0.2 - 0.6 in |
| Type | 10.16 mm | 5.08 - 15.24 mm |
| Type | DIP | DIP |
116-87 Series
CONN IC DIP SOCKET 32POS GOLD
...
| Part | Material Flammability Rating | Contact Material - Post [custom] | Contact Finish - Post | Termination | Mounting Type | Termination Post Length | Termination Post Length | Housing Material | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Contact Material - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Pitch - Post | Pitch - Post | Contact Resistance | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Features | Type | Type | Type | Current Rating (Amps) | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Preci-Dip 116-87-432-41-003101 | UL94 V-0 | Brass | Tin | Solder | Through Hole | 3.18 mm | 0.125 in | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 2 x 16 | 32 | Beryllium Copper | -55 °C | 125 °C | Flash | 2.54 mm | 0.1 in | 10 mOhm | 0.1 in | 2.54 mm | Gold | Elevated, Open Frame | 0.4 in | 10.16 mm | DIP | 1 A | |||||||
Preci-Dip 116-87-628-41-009101 | UL94 V-0 | Brass | Tin | Solder | Through Hole | 3.18 mm | 0.125 in | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Beryllium Copper | -55 °C | 125 °C | Flash | 2.54 mm | 0.1 in | 10 mOhm | 0.1 in | 2.54 mm | Gold | Elevated, Open Frame | 0.6 in | 15.24 mm | DIP | 1 A | 28 | ||||||||
Preci-Dip 116-87-308-41-004101 | UL94 V-0 | Brass | Tin | Solder | Through Hole | 3.18 mm | 0.125 in | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Beryllium Copper | -55 °C | 125 °C | Flash | 2.54 mm | 0.1 in | 10 mOhm | 0.1 in | 2.54 mm | Gold | Elevated, Open Frame | 0.3 " | 7.62 mm | DIP | 1 A | 8 | ||||||||
Preci-Dip 116-87-424-41-001101 | UL94 V-0 | Brass | Tin | Solder | Through Hole | 3.18 mm | 0.125 in | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Beryllium Copper | -55 °C | 125 °C | Flash | 2.54 mm | 0.1 in | 10 mOhm | 0.1 in | 2.54 mm | Gold | Elevated, Open Frame | 0.4 in | 10.16 mm | DIP | 1 A | 24 | ||||||||
Preci-Dip 116-87-422-41-009101 | UL94 V-0 | Brass | Tin | Solder | Through Hole | 3.18 mm | 0.125 in | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Beryllium Copper | -55 °C | 125 °C | Flash | 2.54 mm | 0.1 in | 10 mOhm | 0.1 in | 2.54 mm | Gold | Elevated, Open Frame | 0.4 in | 10.16 mm | DIP | 1 A | 22 | ||||||||
Preci-Dip 116-87-320-41-011101 | UL94 V-0 | Brass | Tin | Solder | Through Hole | 3.18 mm | 0.125 in | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Beryllium Copper | -55 °C | 125 °C | Flash | 2.54 mm | 0.1 in | 10 mOhm | 0.1 in | 2.54 mm | Gold | Elevated, Open Frame | 0.3 " | 7.62 mm | DIP | 1 A | 20 | ||||||||
Preci-Dip 116-87-310-41-003101 | UL94 V-0 | Brass | Tin | Solder | Through Hole | 3.18 mm | 0.125 in | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 2 x 5 | Beryllium Copper | -55 °C | 125 °C | Flash | 2.54 mm | 0.1 in | 10 mOhm | 0.1 in | 2.54 mm | Gold | Elevated, Open Frame | 0.3 " | 7.62 mm | DIP | 1 A | 10 | |||||||
Preci-Dip 116-87-642-41-009101 | UL94 V-0 | Brass | Tin | Solder | Through Hole | 3.18 mm | 0.125 in | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Beryllium Copper | -55 °C | 125 °C | Flash | 2.54 mm | 0.1 in | 10 mOhm | 0.1 in | 2.54 mm | Gold | Elevated, Open Frame | 0.6 in | 15.24 mm | DIP | 1 A | 42 | ||||||||
Preci-Dip 116-87-310-41-008101 | UL94 V-0 | Brass | Tin | Solder | Through Hole | 3.18 mm | 0.125 in | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 2 x 5 | Beryllium Copper | -55 °C | 125 °C | Flash | 2.54 mm | 0.1 in | 10 mOhm | 0.1 in | 2.54 mm | Gold | Elevated, Open Frame | 0.3 " | 7.62 mm | DIP | 1 A | 10 | |||||||
Preci-Dip 116-87-632-41-012101 | UL94 V-0 | Brass | Tin | Solder | Through Hole | 3.18 mm | 0.125 in | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 2 x 16 | 32 | Beryllium Copper | -55 °C | 125 °C | Flash | 2.54 mm | 0.1 in | 10 mOhm | 0.1 in | 2.54 mm | Gold | Elevated, Open Frame | 0.6 in | 15.24 mm | DIP | 1 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 247 | $ 2.96 | |
| 546 | $ 2.70 | |||
Description
General part information
116-87 Series
32 (2 x 16) Pos DIP, 0.4" (10.16mm) Row Spacing Socket Gold Through Hole
