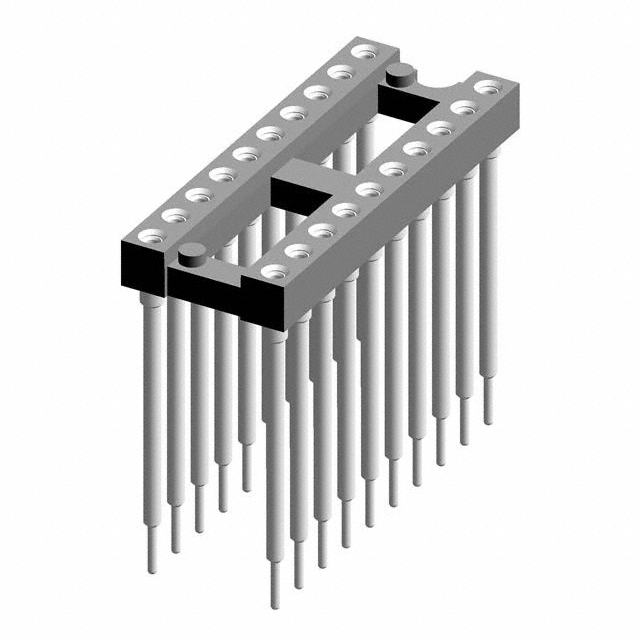

CONN IC DIP SOCKET 20POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

116-87-320-41-011101

Active

Preci-Dip

CONN IC DIP SOCKET 20POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	882	$ 2.64

Description

General part information

116-87 Series

20 (2 x 10) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
