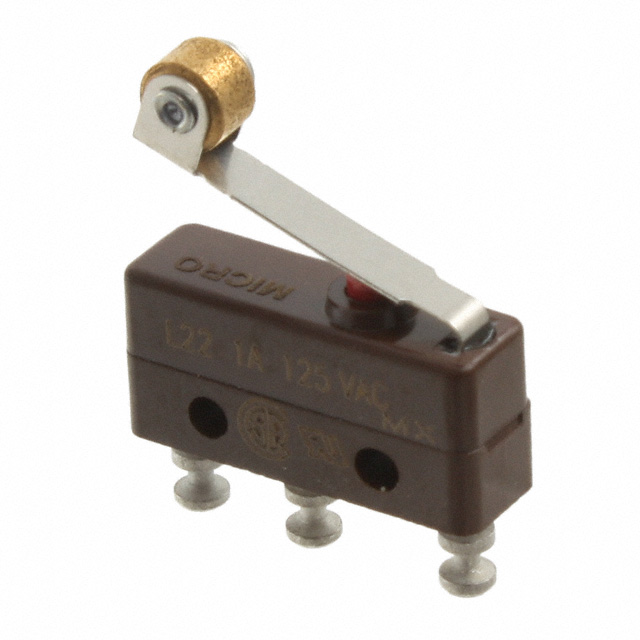

122SM44-T2

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 1A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 1A 125V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACTION SPDT 1A 125V

Part	Circuit	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Pretravel	Pretravel	Differential Travel	Differential Travel	Voltage Rating - AC	Operating Position	Operating Position	Actuator Type	Mounting Type	Release Force	Voltage Rating - DC	Operating Force	Switch Function	Overtravel	Overtravel	Termination Style
Honeywell Sensing and Productivity Solutions 122SM44-T2	SPDT	10000000 Cycles	-55 °C	125 °C	0.218 in	5.5 mm	0.6 mm	0.025 in	125 V	0.562 in	14.3 mm	Lever, Roller	Chassis Mount	57 gf	30 V	198 gf	On-Mom	0.76 mm	0.03 in	Solder Turret

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount
