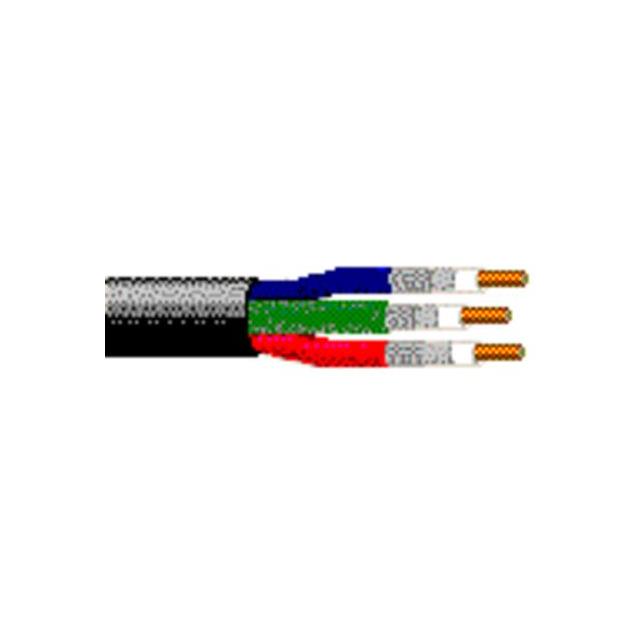

7794A B59500

Active

Belden Inc.

3 #20 PE/GIFHDPE SH FRPVC PVC

Search across all available documentation for this part.

Active

Belden Inc.

3 #20 PE/GIFHDPE SH FRPVC PVC

Technical Specifications

Parameters and characteristics for this part

Specification	7794A B59500

Cable Group	RG-59
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.145 "
Dielectric Diameter [diameter]	3.68 mm
Impedance	75 Ohms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-35 °C
Shield Coverage	95 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	RF Signal
VoP, Velocity of Propagation	83
Wire Gauge	20 AWG

Part	Usage	VoP, Velocity of Propagation	Cable Group	Shield Type	Shield Material	Wire Gauge	Impedance	Conductor Strand	Jacket (Insulation) Material	Shield Coverage	Jacket Color	Length	Length	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type
Belden Inc. 7794A B59500	RF Signal	83	RG-59	Braid Foil	Aluminum Copper Tinned	20 AWG	75 Ohms	Solid	Poly-Vinyl Chloride (PVC)	95 % 100 %	Black	152.4 m	6000 in	0.145 "	3.68 mm	Copper Bare	-35 °C	75 ░C	Coaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 6.71

General part information

Coaxial Cable 20 AWG RG-59 500.0' (152.40m) 75 Ohms
