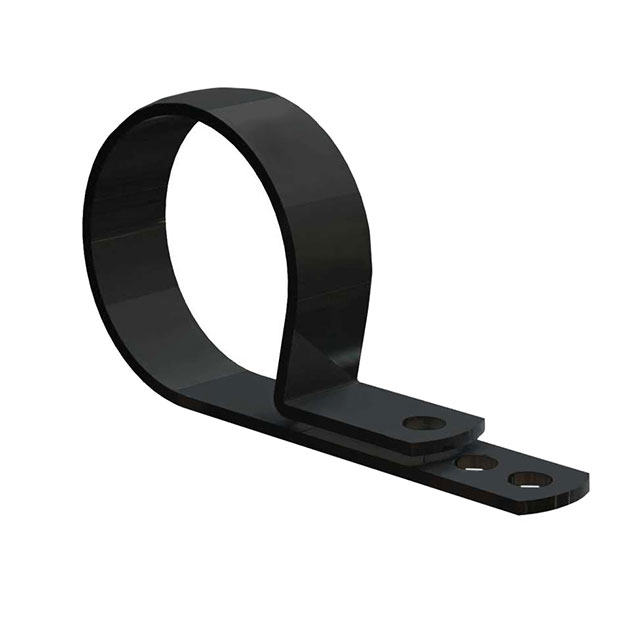

N-20B-BK
ActiveEssentra Access Solutions
CBL CLAMP P-TYPE BLACK FASTENER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
N-20B-BK
ActiveEssentra Access Solutions
CBL CLAMP P-TYPE BLACK FASTENER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | N-20B-BK |
|---|---|
| Color | Black |
| Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Material Thickness | 0.063 in |
| Material Thickness | 1.6 mm |
| Mounting Type | Fastener |
| Opening Size [z] | 30.48 mm, 25.4 mm, 28.58 mm |
| Opening Size [z] | 1.2 in, 1 in, 1.125 in |
| Panel Hole Size | 5.18 mm |
| Panel Hole Size [diameter] | 0.204 in |
| Screw Size | M5 |
| Screw Size | #10 |
| Type | Clamp, P-Type |
| Type Attributes | Adjustable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.45 | |
| 10 | $ 0.38 | |||
| 25 | $ 0.36 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.28 | |||
| 2500 | $ 0.26 | |||
Description
General part information
N-20 Series
Cable Clamp, P-Type Black Fastener 1.000" (25.40mm), 1.125" (28.58mm), 1.200" (30.48mm)
