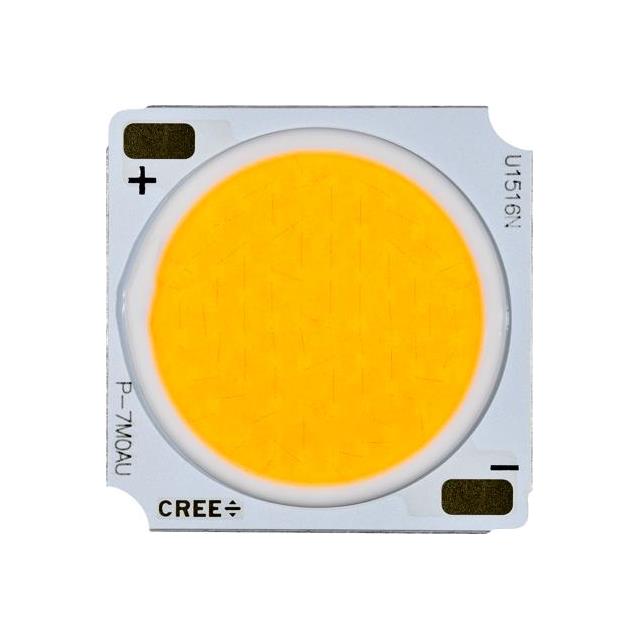

CMU1516-R090-00PN0U0A30H

Active

Cree LED

XLAMP CMU LED WHITE PRO9

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

CMU1516-R090-00PN0U0A30H

Active

Cree LED

XLAMP CMU LED WHITE PRO9

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMU1516-R090-00PN0U0A30H

Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	1.2 A
Current - Test	450 mA
Height [z]	1.5 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	14.5 mm
Size / Dimension [x]	19 mm
Size / Dimension [y]	19 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	33.7 V

CMU1516 Series

...

Part	Current - Max [Max]	Viewing Angle	Type	CCT (K)	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Lens Type	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Temperature - Test	Current - Test	Color	Height [z]	Configuration	Luminous Flux @ Current/Temperature
Cree LED CMU1516-0000-000N0U0A30Q	1.2 A	115 °	Chip On Board (COB)	3000 K	138 lm/W	19 mm	19 mm	Flat	90	14.5 mm	33.7 V	85 °C	450 mA	Warm White	1.5 mm	Square
Cree LED CMU1516-R090-000N0B0A40E	1.2 A	115 °	Chip On Board (COB)	4000 K	180 lm/W	19 mm	19 mm	Flat	70	14.5 mm	33.7 V	85 °C	450 mA	Neutral White	1.5 mm	Square	2732 lm
Cree LED CMU1516-0000-000N0H0A65G	1.2 A	115 °	Chip On Board (COB)	6500 K	169 lm/W	19 mm	19 mm	Flat	80	14.5 mm	33.7 V	85 °C	450 mA	Cool White	1.5 mm	Square	2565 lm
Cree LED CMU1516-R090-00PN0U0A30H	1.2 A	115 °	Chip On Board (COB)			19 mm	19 mm	Flat	90	14.5 mm	33.7 V	85 °C	450 mA	Warm White	1.5 mm	Square
Cree LED CMU1516-R090-000N0U0A31Q	1.2 A	115 °	Chip On Board (COB)	3100 K	135 lm/W	19 mm	19 mm	Flat	90	14.5 mm	33.7 V	85 °C	450 mA	Warm White	1.5 mm	Square	2040 lm
Cree LED CMU1516-R090-000N0U0A27H	1.2 A	115 °	Chip On Board (COB)	2700 K	135 lm/W	19 mm	19 mm	Flat	90	14.5 mm	33.7 V	85 °C	450 mA	Warm White	1.5 mm	Square	2050 lm
Cree LED CMU1516-R090-000N0Z0A40H	1.2 A	115 °	Chip On Board (COB)	4000 K	129 lm/W	19 mm	19 mm	Flat	95	14.5 mm	33.7 V	85 °C	450 mA	Neutral White	1.5 mm	Square	1955 lm
Cree LED CMU1516-R090-00PN0U0A30Q	1.2 A	115 °	Chip On Board (COB)			19 mm	19 mm	Flat	90	14.5 mm	33.7 V	85 °C	450 mA	Warm White	1.5 mm	Square
Cree LED CMU1516-R090-00PN0U0A27H	1.2 A	115 °	Chip On Board (COB)	2700 K		19 mm	19 mm	Flat	90	14.5 mm	33.7 V	85 °C	450 mA	Warm White	1.5 mm	Square
Cree LED CMU1516-R090-00PN0U0A31Q	1.2 A	115 °	Chip On Board (COB)	3100 K		19 mm	19 mm	Flat	90	14.5 mm	33.7 V	85 °C	450 mA	Warm White	1.5 mm	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	90	$ 6.83
		90	$ 6.83

Description

General part information

CMU1516 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMU1516 White, Warm Square
