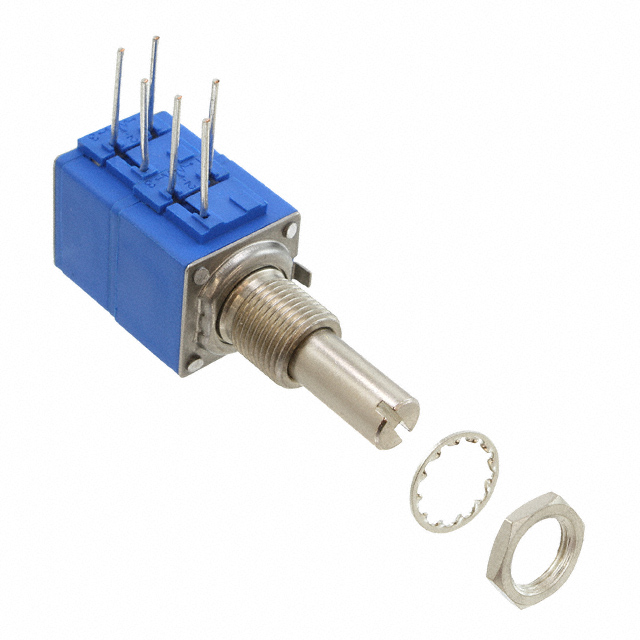

81C2A-E24-D15/D15L
ActiveBourns Inc.
POT 10K OHM 1/4W PLASTIC LOG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
81C2A-E24-D15/D15L
ActiveBourns Inc.
POT 10K OHM 1/4W PLASTIC LOG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 81C2A-E24-D15/D15L |
|---|---|
| Actuator Diameter [diameter] | 0.125 in |
| Actuator Diameter [diameter] | 3.18 mm |
| Actuator Length [z] | 19.05 mm |
| Actuator Length [z] | 0.75 in |
| Actuator Type | Slotted |
| Adjustment Type | Side Adjustment |
| Built in Switch | False |
| Bushing Thread | 1/4-32 |
| Number of Gangs | 2 |
| Number of Turns | 1 |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance (Ohms) | 10k |
| Resistive Material | Conductive Plastic |
| Rotation | 300 ░ |
| Size - Body [x] | 0.625 in |
| Size - Body [x] | 15.88 mm |
| Size - Body [y] | 15.88 mm |
| Size - Body [y] | 0.625 in |
| Taper | Logarithmic |
| Temperature Coefficient | 1000 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 270 | $ 17.67 | |
Description
General part information
81C2A Series
10k Ohm 2 Gang Logarithmic Panel Mount Potentiometer 1 Turns Conductive Plastic 0.25W, 1/4W PC Pins
