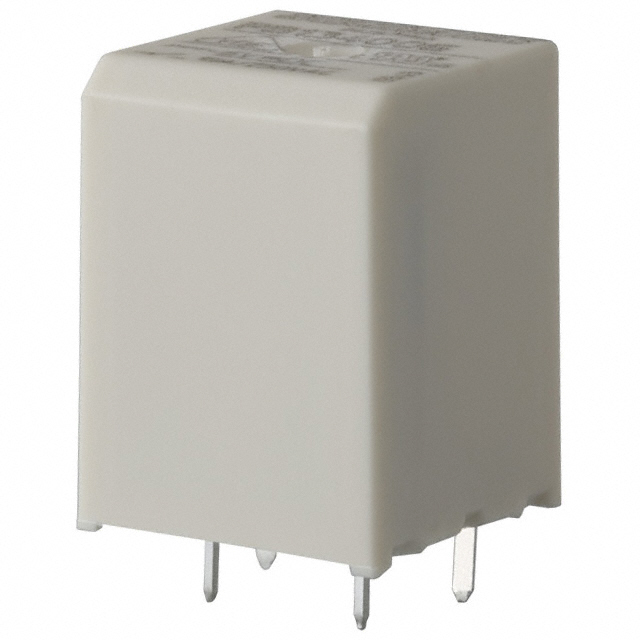

PB134005
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 10A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PB134005
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 10A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PB134005 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 71.4 mA |
| Coil Insulation | Class F |
| Coil Resistance | 70 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 4000 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.69 | |
| 10 | $ 2.52 | |||
| 35 | $ 2.24 | |||
| 70 | $ 2.13 | |||
| 105 | $ 2.02 | |||
| 280 | $ 1.79 | |||
| 525 | $ 1.68 | |||
| 1015 | $ 1.57 | |||
| 5005 | $ 1.51 | |||
Description
General part information
PB1340 Series
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
