32S207-306L5

Active

Rosenberger

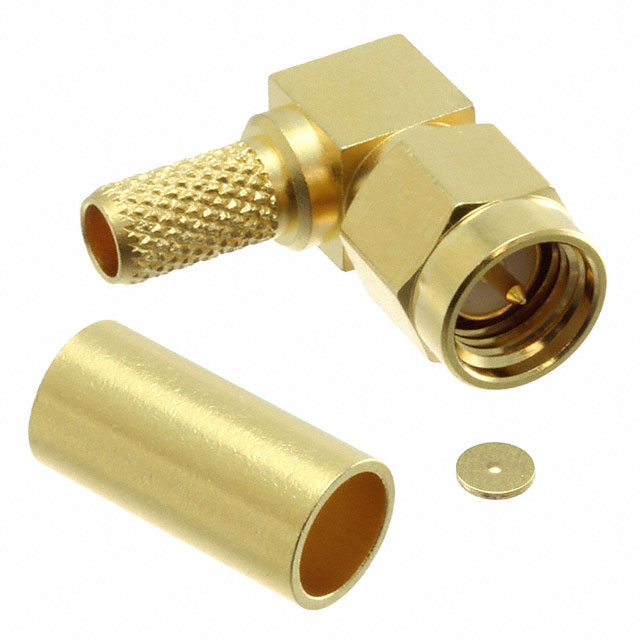

CONN SMA PLUG R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN SMA PLUG R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	32S207-306L5

Body Finish	Gold
Body Material	Beryllium Copper, Brass
Cable Group	141
Cable Group	RG-58C
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	480 V

Part	Housing Color	Contact Termination	Impedance	Shield Termination	Connector Type	Center Contact Material	Mounting Type	Connector Style	Dielectric Material	Mating Cycles	Center Contact Plating	Includes	Body Material	Body Finish	Number of Ports	Voltage Rating	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Cable Group	Mounting Feature
Rosenberger 32S207-306L5	Gold	Solder	50 Ohms	Crimp	Male Pin Plug	Brass	Free Hanging (In-Line) Right Angle	SMA	Polytetrafluoroethylene (PTFE)	500	Gold	1 Connector 1 End Cap 1 Ferrule	Beryllium Copper Brass	Gold	1	480 V	12.4 GHz	-65 ░C	165 °C	141	RG-58C
Rosenberger 32S207-307N5	Silver	Solder	50 Ohms	Crimp	Male Pin Plug	Brass	Free Hanging (In-Line) Right Angle	SMA	Polytetrafluoroethylene (PTFE)	500	Gold		Beryllium Copper Brass	White Bronze	1	480 V	12.4 GHz	-65 ░C	165 °C	223 400	RG-142B	Bulkhead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 17.11

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
