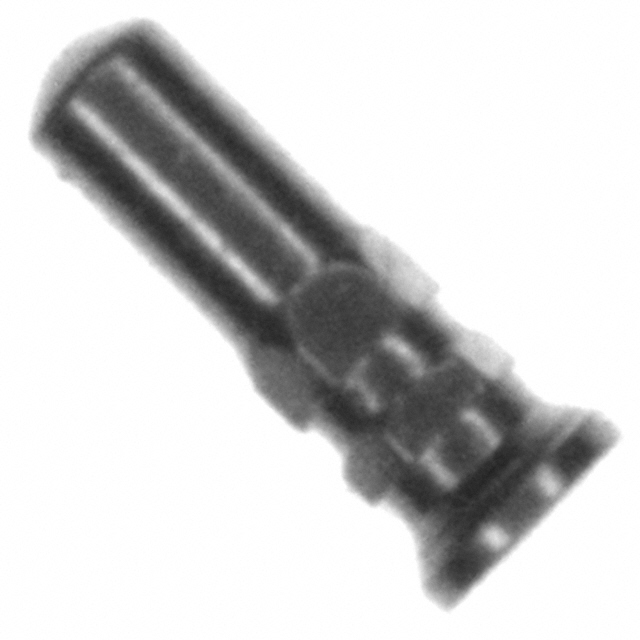

0553-1-15-01-11-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .015-.020 HEX
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0553-1-15-01-11-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .015-.020 HEX
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0553-1-15-01-11-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] [diameter] | 0.51 mm |
| Accepts Pin Diameter [Max] [diameter] | 0.02 " |
| Accepts Pin Diameter [Min] [diameter] | 0.015 " |
| Accepts Pin Diameter [Min] [diameter] | 0.38 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 1.4 mm |
| Flange Diameter [diameter] | 0.055 in |
| Length - Overall [x] | 0.14 " |
| Length - Overall [x] | 3.56 mm |
| Mounting Hole Diameter [diameter] | 0.041 in |
| Mounting Hole Diameter [diameter] | 1.04 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.79 mm |
| Pin Hole Diameter [diameter] | 0.031 in |
| Socket Depth [z] | 3.15 mm |
| Socket Depth [z] | 0.124 " |
| Tail Type | No Tail |
| Termination | Press-Fit, Hex |
0553-1 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] | Contact Finish | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Tail Type | Socket Depth [z] | Socket Depth [z] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Accepts Pin Diameter [Min] [diameter] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Min] [diameter] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | 2.54 µm | 100 µin | 0.14 " | 3.56 mm | Tin-Lead | 0.041 in | 1.04 mm | No Tail | 3.15 mm | 0.124 " | 0.79 mm | 0.031 in | 1.4 mm | 0.055 in | Press-Fit Hex | Beryllium Copper | -55 °C | 125 °C | 0.015 " | 0.51 mm | 0.02 " | 0.38 mm | ||||
Mill-Max Manufacturing Corp. | 0.76 Ám | 30 Áin | 0.14 " | 3.56 mm | Gold | 0.041 in | 1.04 mm | No Tail | 3.15 mm | 0.124 " | 0.79 mm | 0.031 in | 1.4 mm | 0.055 in | Press-Fit Hex | Beryllium Copper | -55 °C | 125 °C | 0.38 mm | 0.022 in | 0.015 " | 0.56 mm | ||||
Mill-Max Manufacturing Corp. | 0.25 Ám | 10 Áin | 0.14 " | 3.56 mm | Gold | 0.041 in | 1.04 mm | No Tail | 3.15 mm | 0.124 " | 0.79 mm | 0.031 in | 1.4 mm | 0.055 in | Press-Fit Hex | Beryllium Copper | -55 °C | 125 °C | 0.015 " | 0.51 mm | 0.02 " | 0.38 mm | ||||
Mill-Max Manufacturing Corp. | 0.76 Ám | 30 Áin | 0.14 " | 3.56 mm | Gold | 0.041 in | 1.04 mm | No Tail | 3.15 mm | 0.124 " | 0.79 mm | 0.031 in | 1.4 mm | 0.055 in | Press-Fit Hex | Beryllium Copper | -55 °C | 125 °C | 0.015 " | 0.51 mm | 0.02 " | 0.38 mm | ||||
Mill-Max Manufacturing Corp. | 0.25 Ám | 10 Áin | 0.14 " | 3.56 mm | Gold | 0.041 in | 1.04 mm | No Tail | 3.91 mm | 0.154 in | 0.79 mm | 0.031 in | 1.4 mm | 0.055 in | Press-Fit Hex | Beryllium Copper | -55 °C | 125 °C | 0.015 " | 0.51 mm | 0.02 " | 0.38 mm | ||||
Mill-Max Manufacturing Corp. | 2.54 µm | 100 µin | 0.14 " | 3.56 mm | Tin | 0.041 in | 1.04 mm | No Tail | 3.91 mm | 0.154 in | 0.79 mm | 0.031 in | 1.4 mm | 0.055 in | Press-Fit Hex | Beryllium Copper | -55 °C | 125 °C | 0.015 " | 0.51 mm | 0.02 " | 0.38 mm | ||||
Mill-Max Manufacturing Corp. | 0.76 Ám | 30 Áin | 0.14 " | 3.56 mm | Gold | 0.041 in | 1.04 mm | No Tail | 3.91 mm | 0.154 in | 0.79 mm | 0.031 in | 1.4 mm | 0.055 in | Press-Fit Hex | Beryllium Copper | -55 °C | 125 °C | 0.015 " | 0.51 mm | 0.02 " | 0.38 mm | ||||
Mill-Max Manufacturing Corp. | 0.25 Ám | 10 Áin | 0.14 " | 3.56 mm | Gold | 0.041 in | 1.04 mm | No Tail | 3.91 mm | 0.154 in | 0.79 mm | 0.031 in | 1.4 mm | 0.055 in | Press-Fit Hex | Beryllium Copper | -55 °C | 125 °C | 0.015 " | 0.51 mm | 0.02 " | 0.38 mm | ||||
Mill-Max Manufacturing Corp. | 2.54 µm | 100 µin | 0.14 " | 3.56 mm | Tin | 0.041 in | 1.04 mm | No Tail | 3.91 mm | 0.154 in | 0.79 mm | 0.031 in | 1.4 mm | 0.055 in | Press-Fit Hex | Beryllium Copper | -55 °C | 125 °C | 0.015 " | 0.51 mm | 0.02 " | 0.38 mm | ||||
Mill-Max Manufacturing Corp. | 0.25 Ám | 10 Áin | 0.14 " | 3.56 mm | Gold | 0.041 in | 1.04 mm | No Tail | 3.91 mm | 0.154 in | 0.79 mm | 0.031 in | 1.4 mm | 0.055 in | Press-Fit Hex | Beryllium Copper | -55 °C | 125 °C | 0.015 " | 0.51 mm | 0.02 " | 0.38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.38 | |
| 10 | $ 0.29 | |||
| 25 | $ 0.26 | |||
| 50 | $ 0.24 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| 2500 | $ 0.15 | |||
Description
General part information
0553-1 Series
Pin Receptacle Connector 0.015" ~ 0.020" (0.38mm ~ 0.51mm) No Tail Press-Fit, Hex
