M2024SA2G40

Obsolete

NKK Switches

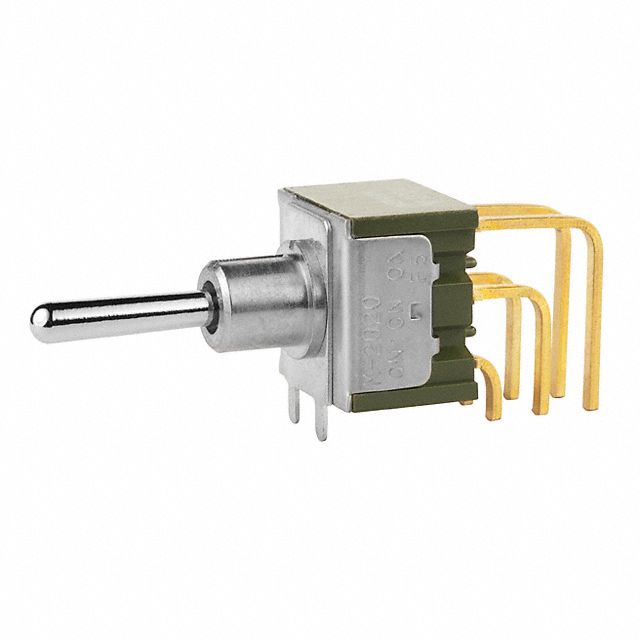

SWITCH TOGGLE SP3T 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE SP3T 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	M2024SA2G40

Actuator Length [x]	12.28 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SP3T
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Jumper needed to achieve triple throw
Illumination	Non-Illuminated
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Circuit	Voltage Rating - AC	Electrical Life	Actuator Length [x]	Mounting Type	Illumination	Termination Style	Switch Function	Actuator Material	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Features	Bushing Thread	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type
NKK Switches M2024SA2G40	SP3T	28 V	50000 Cycles	12.28 mm	Right Angle Through Hole Vertical	Non-Illuminated	PC Pin	On-On-On	Brass Chrome Plated	6.5 mm	28 V	Jumper needed to achieve triple throw	Unthreaded	0.4 VA	-30 ░C	85 °C	Standard Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SP3T Through Hole, Right Angle, Vertical
