1814647

Active

Phoenix Contact

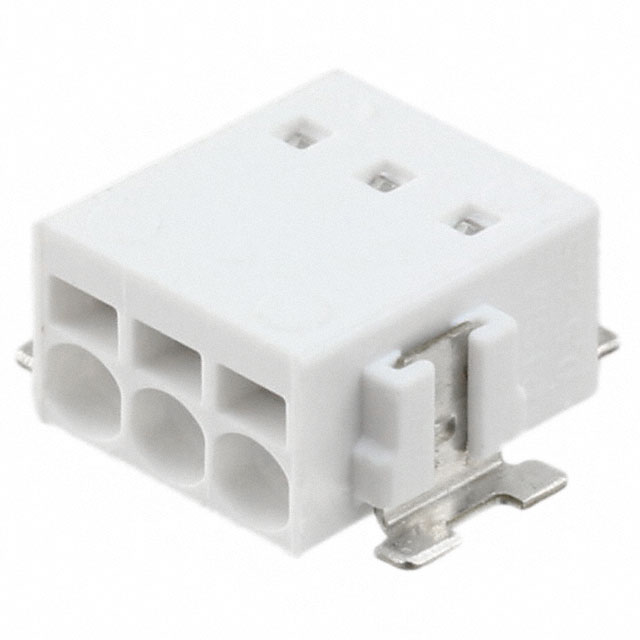

TERMINAL BLOCK, WTB, 3WAY, 26-20AWG ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

1814647

Active

Phoenix Contact

TERMINAL BLOCK, WTB, 3WAY, 26-20AWG ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.70
	Digi-Reel®	1	$ 0.70
	Tape & Reel (TR)	770	$ 0.86
		1540	$ 0.79
		2310	$ 0.73
		3850	$ 0.70
Newark	Each	1	$ 2.09
		50	$ 1.96
		100	$ 1.83
		250	$ 1.68
		500	$ 1.53
		1000	$ 1.33
Sager	N/A	770	$ 0.91
		1540	$ 0.88

Description

General part information

PTSM Series

Pluggable Terminal Blocks PTSM 0,5/ 8-2,5-H SMD WH R44

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Specification	1814647	PTSM Series

Color	-	White, Black
Connector Type	Poke-In Wire, Receptacle	Poke-In Wire, Receptacle
Contact Mating Finish	-	Tin
Contact Tail Length	-	0.079 - 0.083 in
Contact Tail Length	-	2 - 2.1 mm
Current - IEC	-	6 A
Current - UL	-	5 A
Current Rating (Amps)	5 A	5 A
Features	Solder Retention	Solder Retention, Board Guide
Header Orientation	-	90°, Right Angle
Housing Color	White	White
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Liquid Crystal Polymer (LCP)
Insulation Height	-	0.197 in
Insulation Height	-	5 mm
Material Flammability Rating	-	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Surface Mount, Right Angle, Through Hole
Number of Levels	-	1
Number of Positions	-	2 - 8
Pitch [x]	0.098 in	0.098 in
Pitch [x]	2.5 mm	2.5 mm
Positions Per Level	-	2 - 8
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Termination Style	-	Solder
Type	-	Header, Male Pins, Shrouded (4 Side), Header, Female Sockets
Voltage - IEC	-	160 - 200 V
Voltage - UL	-	150 V
Voltage Rating	150 VDC	150 VDC
Wire Gauge [Max]	26 AWG	26 AWG
Wire Gauge [Min]	20 AWG	20 AWG

Part	Features	Header Orientation	Voltage - UL	Termination Style	Pitch [x]	Pitch [x]	Color	Insulation Height	Insulation Height	Contact Tail Length	Contact Tail Length	Housing Material	Number of Positions	Positions Per Level	Material Flammability Rating	Type	Current - UL	Current - IEC	Mounting Type	Number of Levels	Contact Mating Finish	Voltage - IEC	Connector Type	Wire Gauge [Min]	Wire Gauge [Max]	Housing Color	Style	Voltage Rating	Termination	Current Rating (Amps)
Phoenix Contact 1708017	Solder Retention	90°, Right Angle	150 V	Solder	0.098 in	2.5 mm	White	0.197 in	5 mm	0.079 in	2 mm	Polyamide (PA), Nylon	8	8	UL94 V-0	Header, Male Pins, Shrouded (4 Side)	5 A	6 A	Surface Mount	1	Tin	160 V
Phoenix Contact 1814647	Solder Retention				0.098 in	2.5 mm						Polyamide (PA), Nylon							Surface Mount, Right Angle				Poke-In Wire, Receptacle	20 AWG	26 AWG	White	Board to Cable/Wire	150 VDC	Solder	5 A
Phoenix Contact 1810780	Board Guide	90°, Right Angle	150 V	Solder	0.098 in	2.5 mm	Black	0.197 in	5 mm	0.083 "	2.1 mm	Liquid Crystal Polymer (LCP)	2	2	UL94 V-0	Header, Female Sockets	5 A	6 A	Through Hole	1	Tin	200 V
Phoenix Contact 1814692	Solder Retention				0.098 in	2.5 mm						Polyamide (PA), Nylon	8						Surface Mount, Right Angle				Poke-In Wire, Receptacle	20 AWG	26 AWG	White	Board to Cable/Wire	150 VDC	Solder	5 A
Phoenix Contact 1810764	Board Guide, Solder Retention	90°, Right Angle	150 V	Solder	0.098 in	2.5 mm	Black	0.197 in	5 mm			Liquid Crystal Polymer (LCP)	7	7	UL94 V-0	Header, Female Sockets	5 A	6 A	Surface Mount	1	Tin	160 V
Phoenix Contact 1810845	Board Guide	90°, Right Angle	150 V	Solder	0.098 in	2.5 mm	Black	0.197 in	5 mm	0.083 "	2.1 mm	Liquid Crystal Polymer (LCP)	8	8	UL94 V-0	Header, Female Sockets	5 A	6 A	Through Hole	1	Tin	200 V
Phoenix Contact 1814579					0.098 in	2.5 mm						Polyamide (PA), Nylon							Through Hole				Poke-In Wire, Receptacle	20 AWG	26 AWG	White	Board to Cable/Wire	150 VDC	Solder	5 A
