ZX10E10E01

Active

Honeywell Sensing and Productivity Solutions

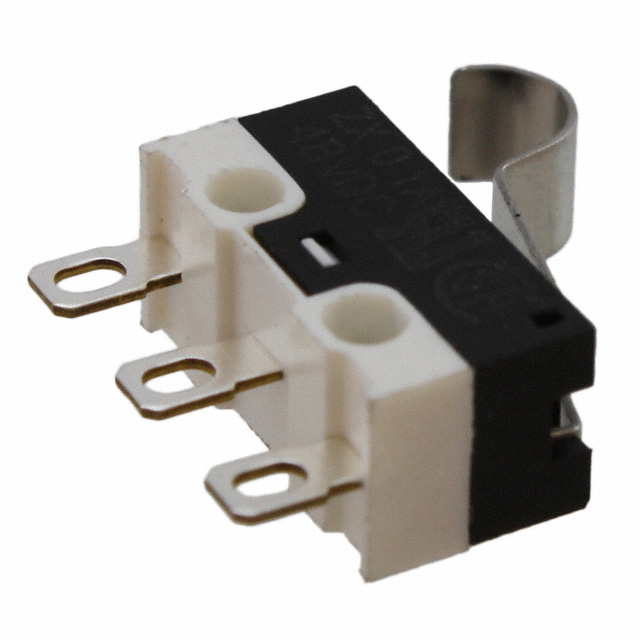

SWITCH SNAP ACTION SPDT 0.1A 48V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 0.1A 48V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZX10E10E01	ZX10E Series

Actuator Type	Simulated Roller, Lever	Lever, Straight, Simulated Roller, Lever, Round (Pin Plunger)
Circuit	SPDT	SPDT
Current Rating (Amps)	100 mA	100 mA
Differential Travel	0.05 in	0.012 - 0.05 in
Differential Travel	1.3 mm	0.3 - 1.3 mm
Electrical Life	1000000 Cycles	1000000 Cycles
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Chassis Mount	Through Hole, Right Angle, Chassis Mount
Operating Force	55 gf	48 - 150 gf
Operating Position	-	8.4 mm
Operating Position	-	0.33 in
Operating Position	-	0.276 in
Operating Position	-	7 mm
Operating Position [custom]	0.437 "	0.437 "
Operating Position [custom]	11.1 mm	11.1 mm
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.6 mm	0.2 - 0.6 mm
Overtravel	0.025 "	0.008 - 0.025 "
Pretravel	0.15 in	0.051 - 0.15 in
Pretravel	3.8 mm	1.3 - 3.8 mm
Release Force	8 gf	8 - 20 gf
Switch Function	On-Mom	On-Mom
Termination Style	Solder Lug	PC Pin, Solder Lug
Voltage Rating - DC	48 V	48 V

SWITCH SNAP ACTION SPDT 0.1A 48V

Part	Switch Function	Voltage Rating - DC	Operating Position	Operating Position	Operating Force	Mechanical Life	Mounting Type	Pretravel	Pretravel	Actuator Type	Differential Travel	Differential Travel	Overtravel	Overtravel	Release Force	Termination Style	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Electrical Life	Operating Position [custom]	Operating Position [custom]	Operating Position [x]	Operating Position [x]
Honeywell Sensing and Productivity Solutions ZX10E50C01	On-Mom	48 V	8.4 mm	0.33 in	48 gf	1000000 Cycles	Through Hole, Right Angle	0.134 in	3.4 mm	Lever, Straight	0.05 in	1.3 mm	0.6 mm	0.025 "	8 gf	PC Pin	SPDT	-40 °C	120 °C	100 mA	1000000 Cycles
Honeywell Sensing and Productivity Solutions ZX10E10E01	On-Mom	48 V			55 gf	1000000 Cycles	Chassis Mount	0.15 in	3.8 mm	Lever, Simulated Roller	0.05 in	1.3 mm	0.6 mm	0.025 "	8 gf	Solder Lug	SPDT	-40 °C	120 °C	100 mA	1000000 Cycles	0.437 "	11.1 mm
Honeywell Sensing and Productivity Solutions ZX10E50E01	On-Mom	48 V			55 gf	1000000 Cycles	Through Hole, Right Angle	0.15 in	3.8 mm	Lever, Simulated Roller	0.05 in	1.3 mm	0.6 mm	0.025 "	8 gf	PC Pin	SPDT	-40 °C	120 °C	100 mA	1000000 Cycles	0.437 "	11.1 mm
Honeywell Sensing and Productivity Solutions ZX10E10A01	On-Mom	48 V			150 gf	1000000 Cycles	Chassis Mount	0.051 in	1.3 mm	Round (Pin Plunger)	0.012 "	0.3 mm	0.2 mm	0.008 in	20 gf	Solder Lug	SPDT	-40 °C	120 °C	100 mA	1000000 Cycles			0.276 in	7 mm
